Firing Order: Illustrations

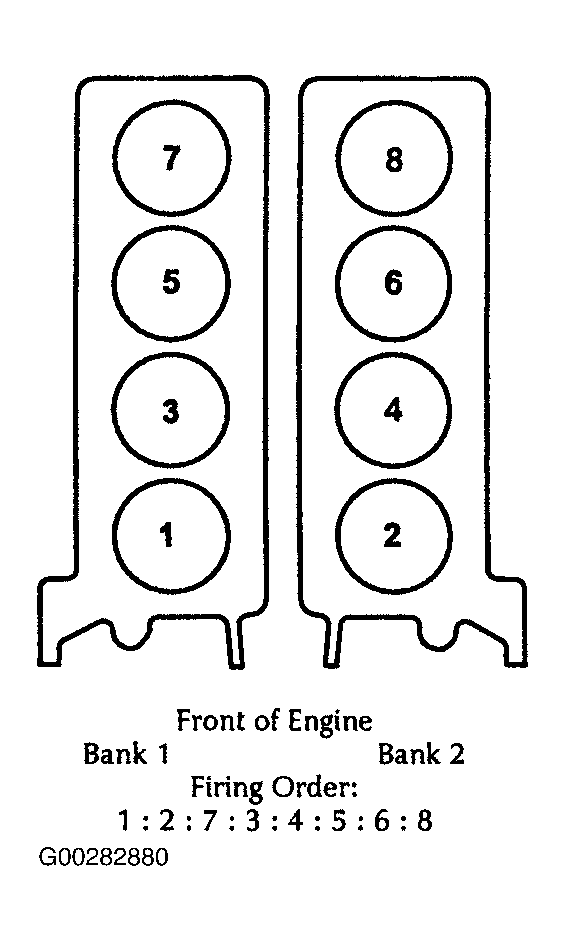

Fig 1: Identifying Firing Order (4.0L)

G00282880

Courtesy of JAGUAR CARS, INC.
