Extension Housing Seal: Installation

Install a new housing oil seal.
1. Lubricate the oil seal prior to fitting.
2. Using tool 307-358, fit the oil seal.

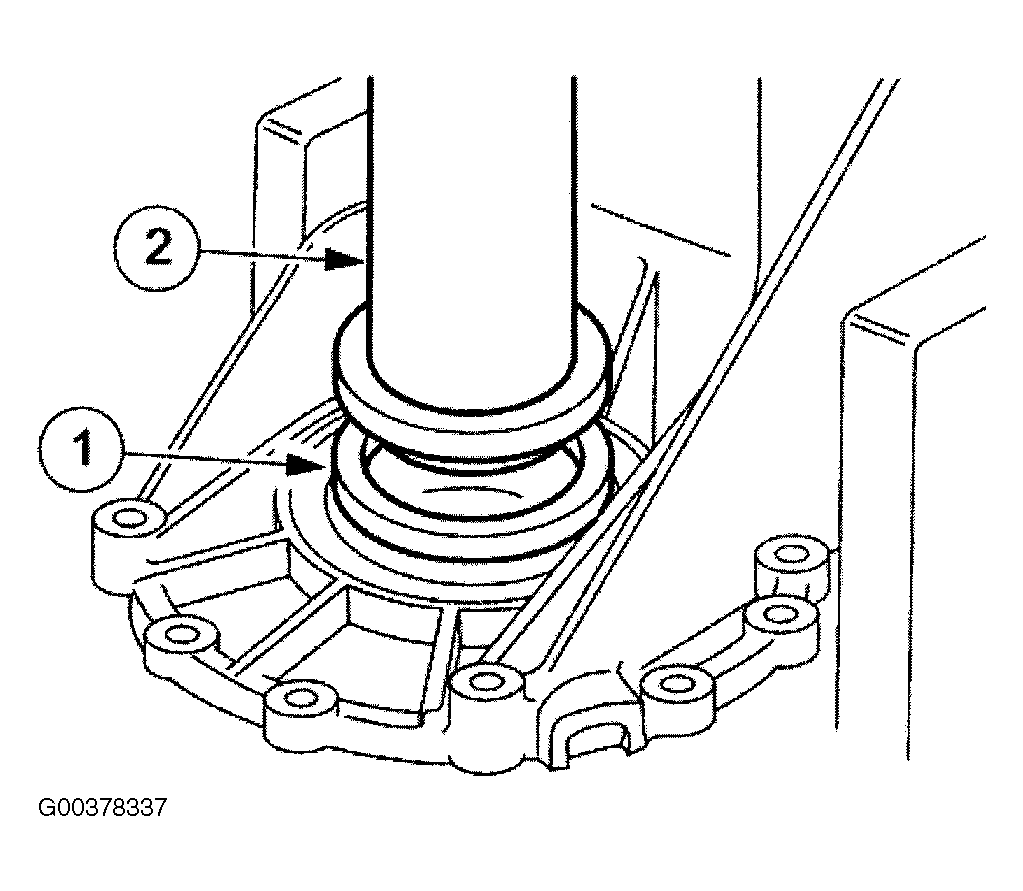

Fig 1: Installing Oil Seal
Courtesy of JAGUAR CARS, INC.
Fit the drive coupling to the housing.

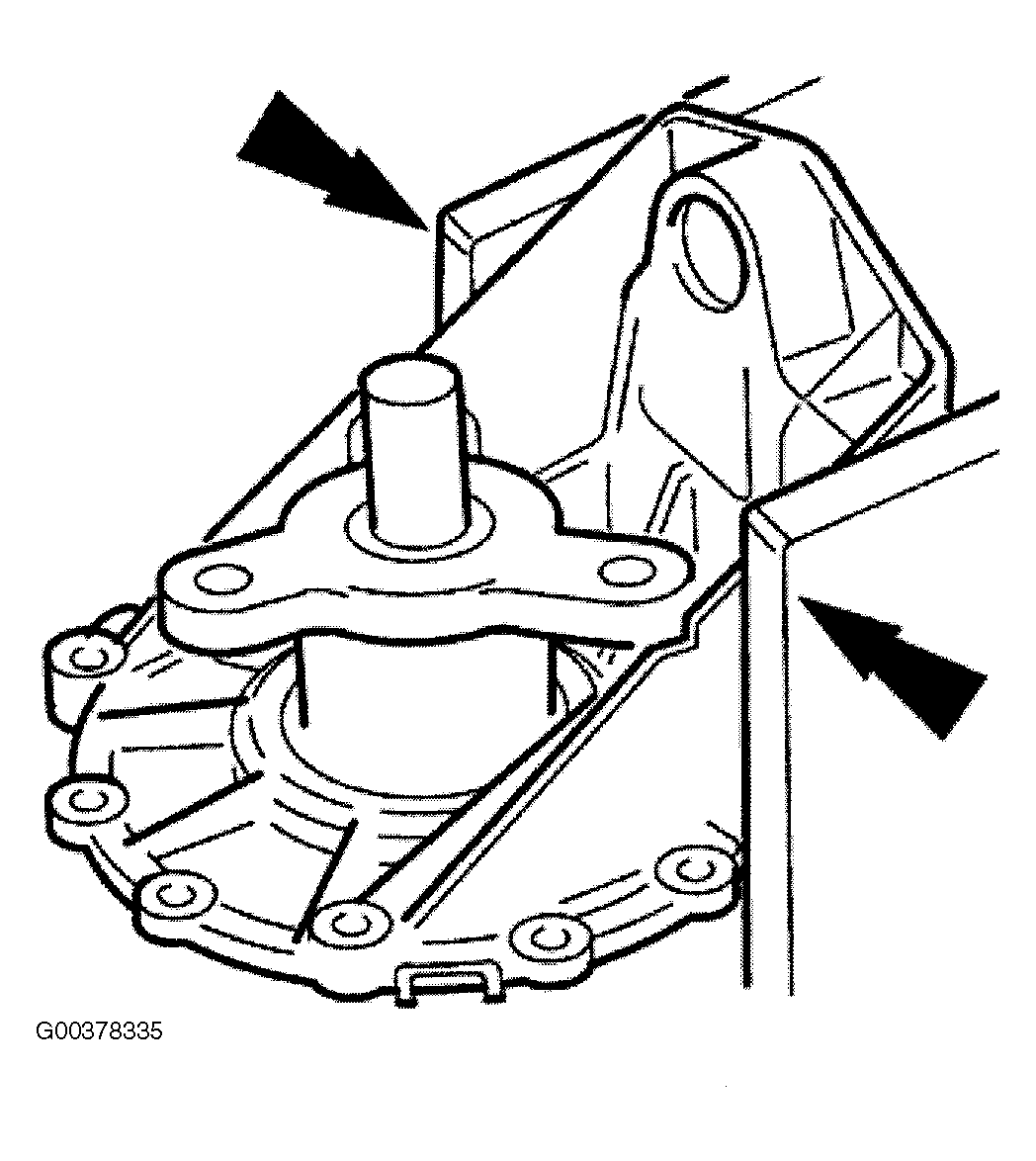

- Hold the housing assembly in a vice with soft jaws fitted and carefully insert the coupling. See Figure.
- Fit tool 205-053 to the coupling.
Use tool 307-356 to tighten the coupling nut to the specified torque figure.

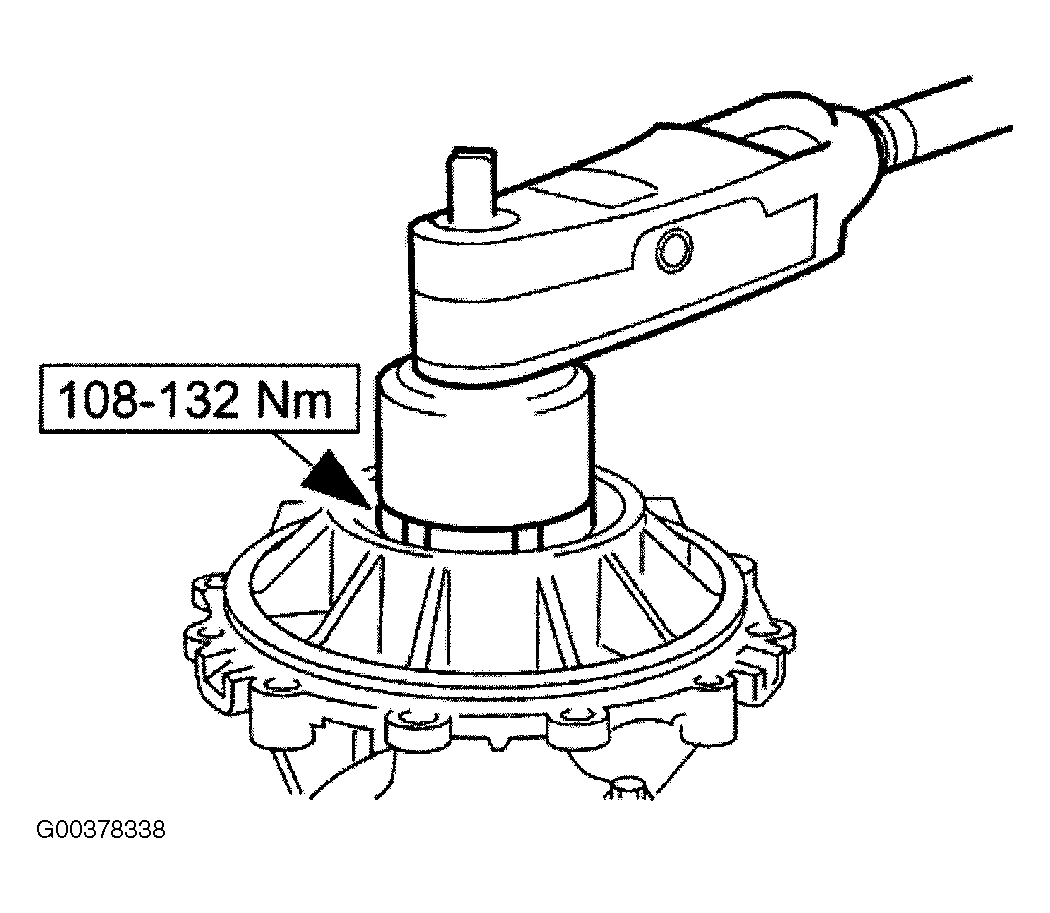

Fig 2: Installing Coupling Nut
Courtesy of JAGUAR CARS, INC.
Stake the coupling nut at two positions.

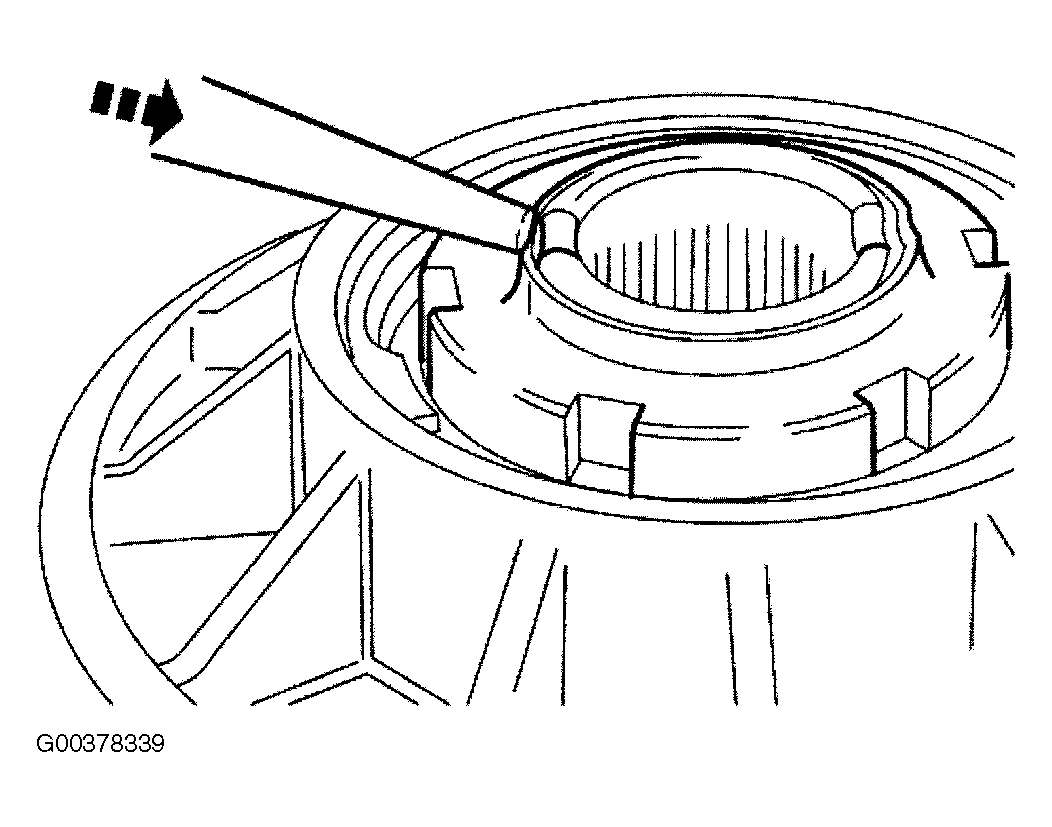

Fig 3: Staking Coupling Nut
Courtesy of JAGUAR CARS, INC.
Refit the rear extension housing. Refer to EXTENSION HOUSING "O" RING SEAL .
Check the transmission fluid level. Refer to TRANSMISSION FLUID FILLING .
