Adaptive Damping Control Module Connector End View

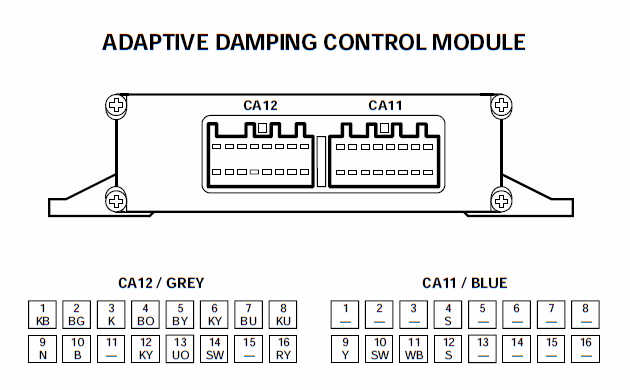

Fig 1: Adaptive Damping Control Module Connector End View
G00558644Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC
