Restraints Control Module Connector End View

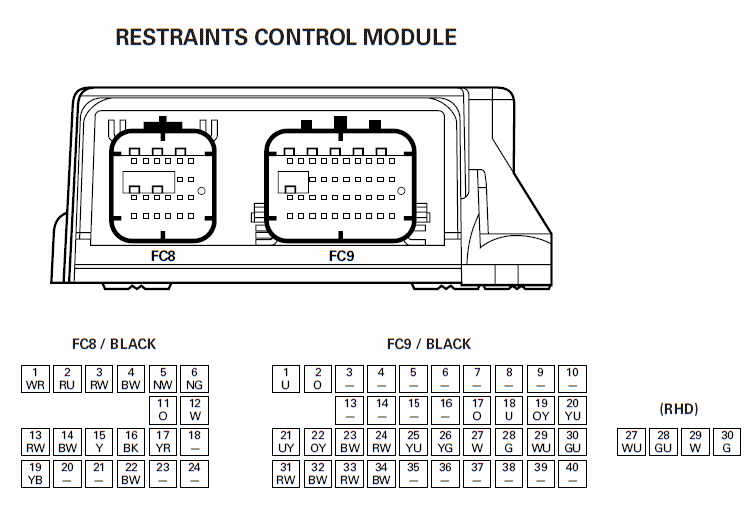

Fig 1: Restraints Control Module Connector End View
G00558734Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC
