Instrument Cluster Connector End View
April 5, 2026:
LEMON Manuals is launched!
Read the announcement.
Instrument Cluster Connector End View

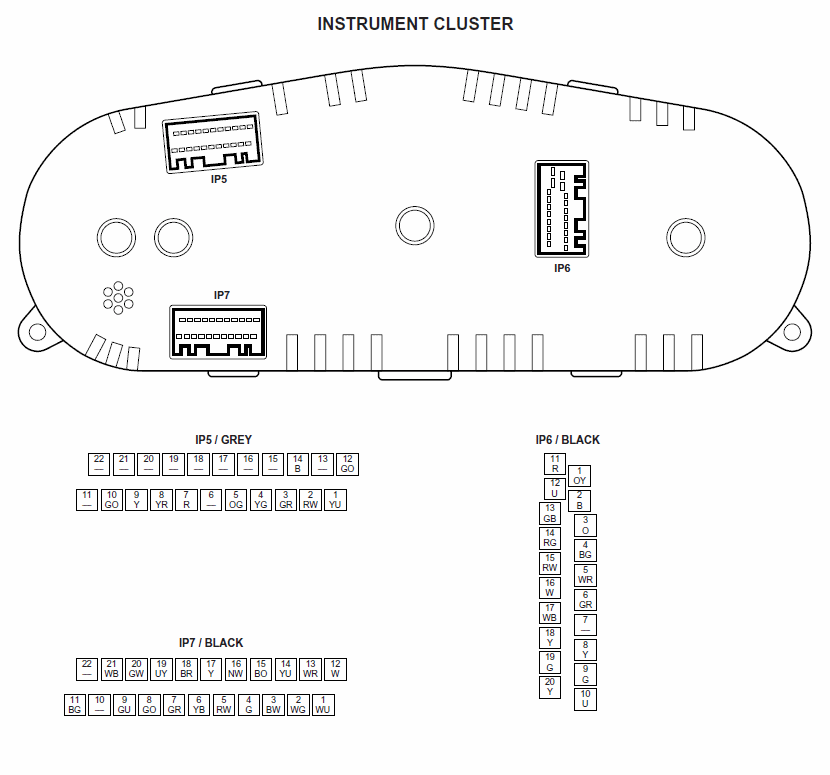

Fig 1: Instrument Cluster Connector End View
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC
