Connector Pin Identity Chart for FC043

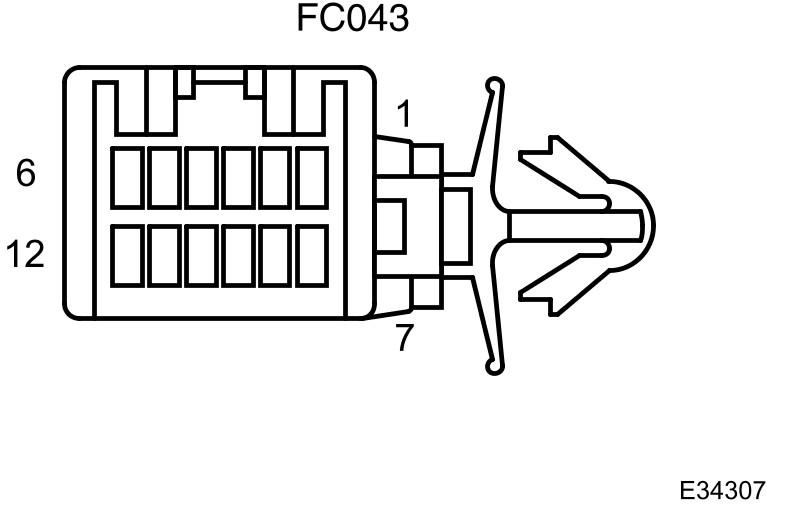

Fig 1: Connector Pin For FC043
GJ0001044Courtesy of JAGUAR CARS, INC.
Pin Number Circuit Circuit Function
1   Input CLOCK
2   Input START
3   Input DATA IN
4   Output DATA OUT
5   Input ignition (positive)
6   Input auxiliary (negative)
7   Ground
8   Dimmer
9   Dimmer override
10   Not used
11   Not used
12   Not used
