Manifold Absolute Pressure (MAP) Sensor - Removal and Installation: Installation

  1. To install, reverse the removal procedure.
    • Tighten to 10 Nm.

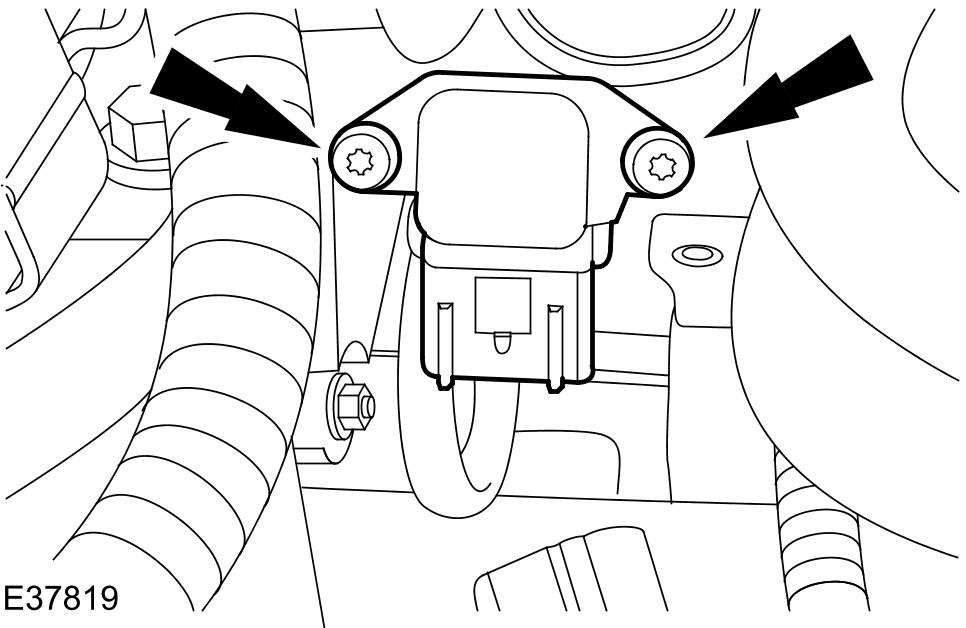

      GJ0002306Courtesy of JAGUAR CARS, INC.
