Front Subframe Front Bushing



Front Subframe Front Bushing

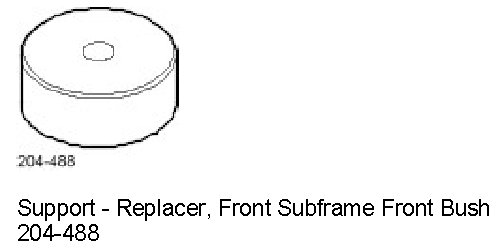

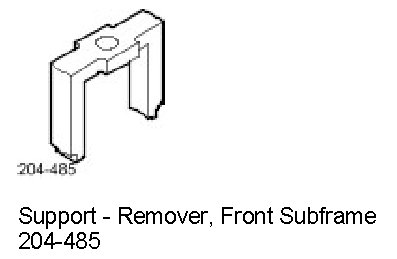

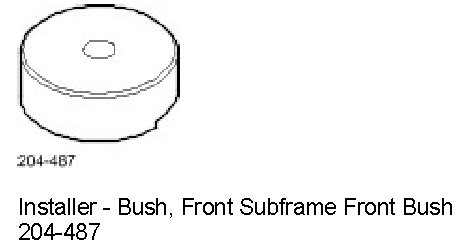

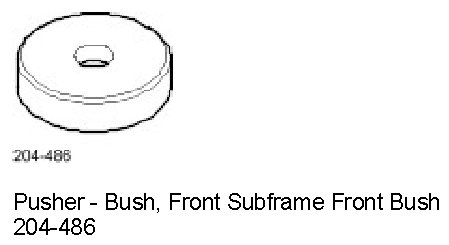

Special Service Tools
















Removal
1. Remove the front subframe.

2. CAUTION: Make sure the cutting blade does not contact the front subframe. Failure to follow this instruction may result in damage to the front subframe.

Cut the edges of the front subframe front bushing







3. NOTE: Note the orientation of the bushing before removal.

Using the special tools, remove the front subframe front bushing.







Installation

1. NOTE: Make sure the bushing is correctly orientated.

Using the special tools, install the front subframe front bushing.







2. Install the front subframe.
