Navigation System Module: Removal

NOTE: Make sure the mep DVD has been removed before disconnecting the battery ground cable.

Disconnect the battery ground cable. << >>

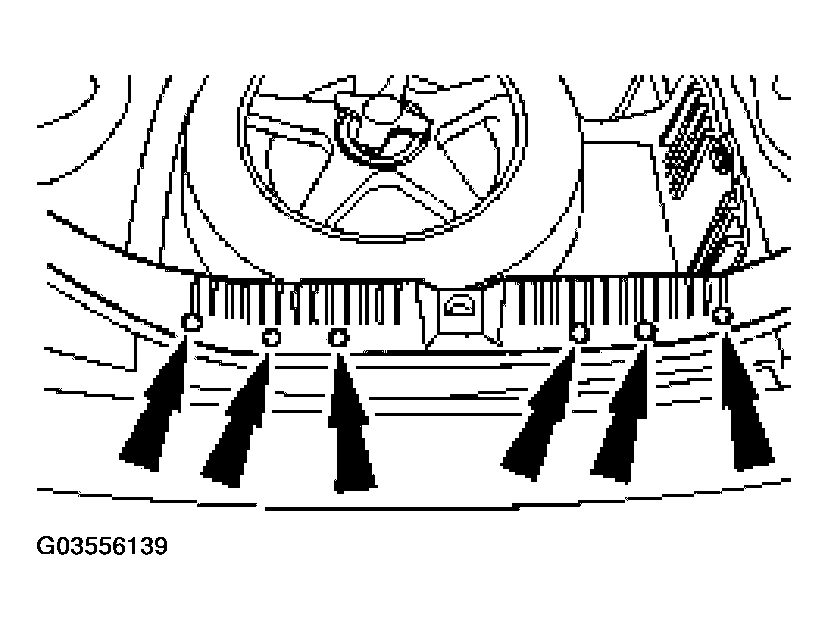

Remove the luggage compartment trim panel lower retaining clips.

Fig 1: Removing Luggage Compartment Trim Panel Lower Retaining Clips
Courtesy of JAGUAR CARS, INC.
Remove the luggage compartment trim panel.

Fig 2: Removing Luggage Compartment Trim Panel
Courtesy of JAGUAR CARS, INC.
Detach the luggage compartment side trim panel.
1. Remove the luggage compartment side trim panel retaining clip.
2. Detach the luggage compartment side trim panel.

  Fig 3: Detaching Luggage Compartment Side Trim Panel
  Courtesy of JAGUAR CARS, INC.
Detach the air suspension pipe.

Fig 4: Detaching Air Suspension Pipe
Courtesy of JAGUAR CARS, INC.

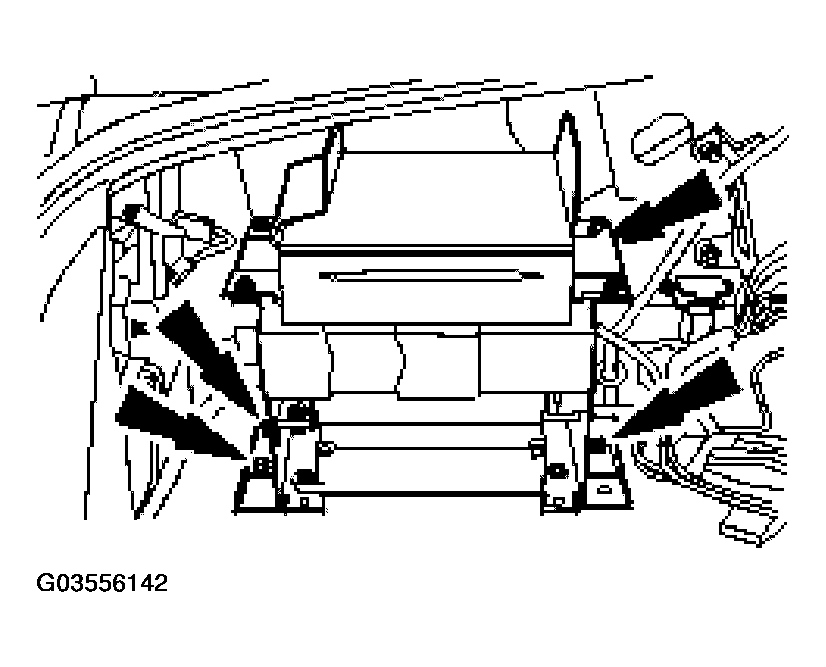

Detach the module retaining bracket.

Fig 5: Detaching Module Retaining Bracket
Courtesy of JAGUAR CARS, INC.

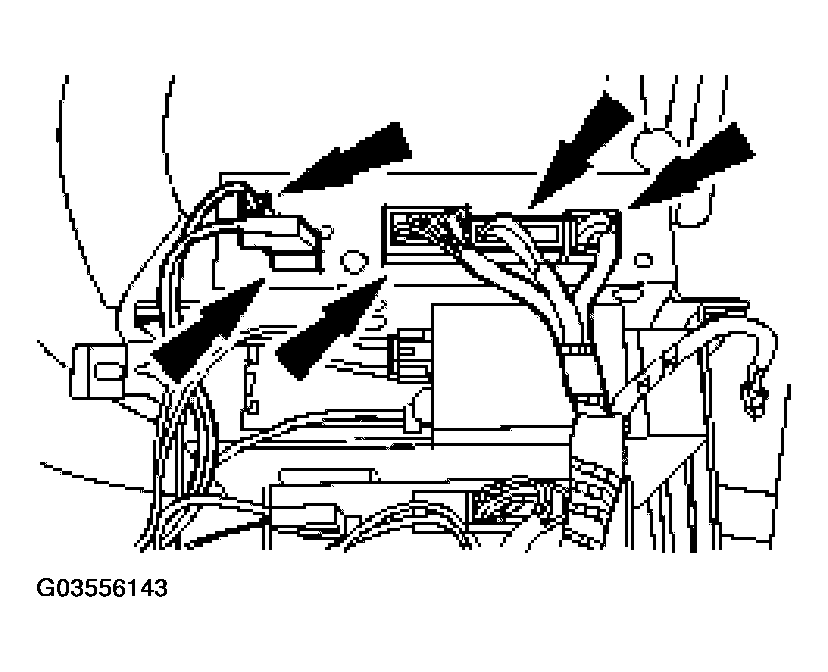

Disconnect the navigation system module electrical connectors and fibre optic connector.

Fig 6: Disconnecting Navigation System Module Electrical Connectors
Courtesy of JAGUAR CARS, INC.

NOTE: Right-hand shown, left-hand similar.

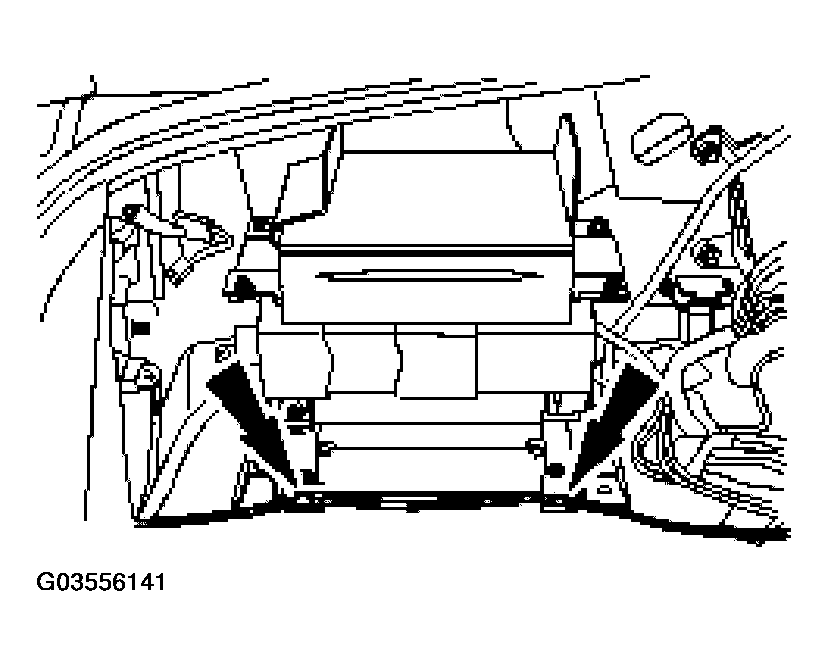

Fig 7: Removing Navigation System Module

Courtesy of JAGUAR CARS, INC.
