System Specifications

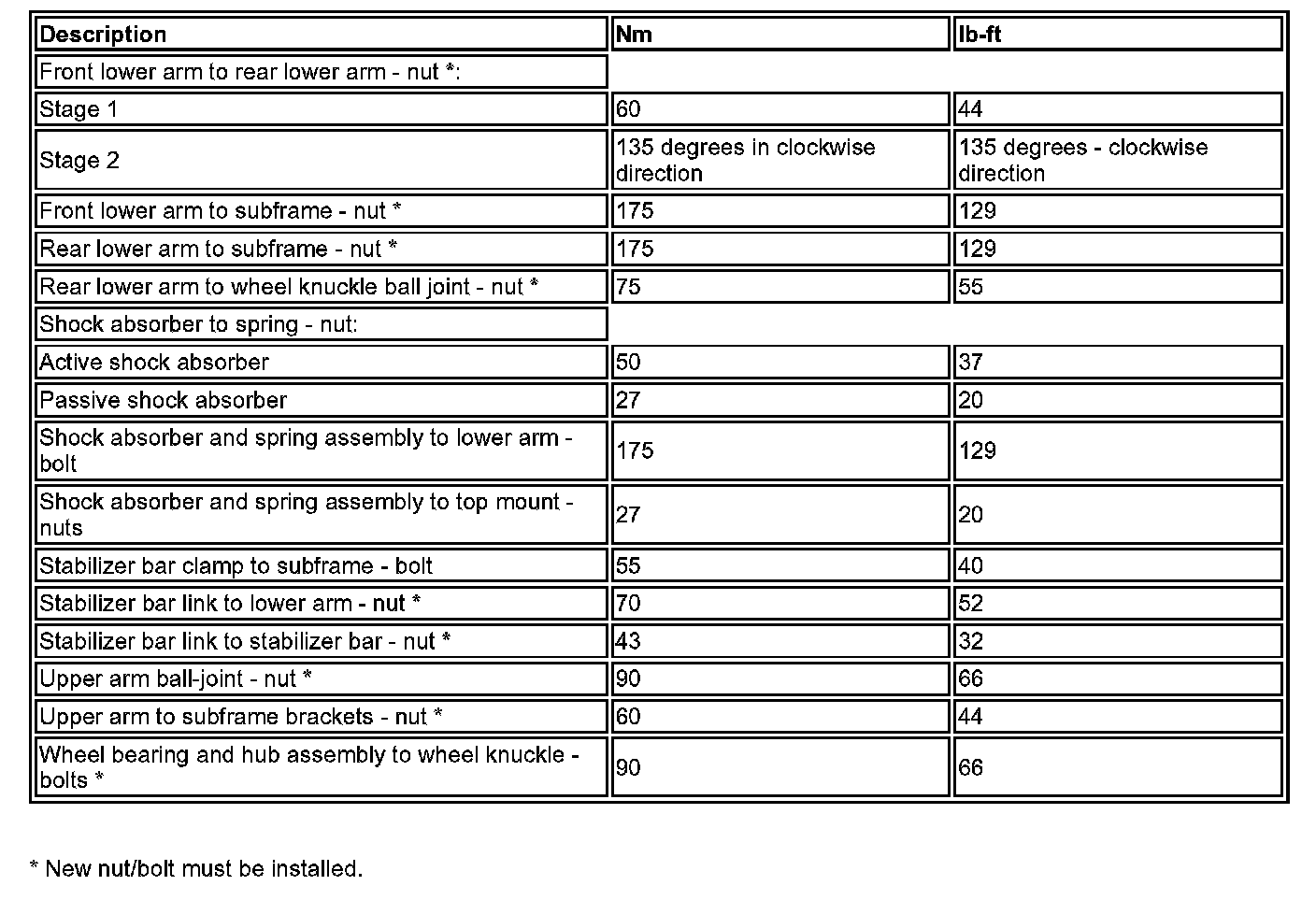

Torque Specifications

CAUTION: Nuts and bolts must be tightened with the weight of the vehicle on the suspension.





^ New nut/bolt must be installed.

Front Suspension

CAUTION: Nuts and bolts must be tightened with the weight of the vehicle on the suspension.
