Power Window Switch: Service and Repair

Window Control Switch (86.25.08)

Removal

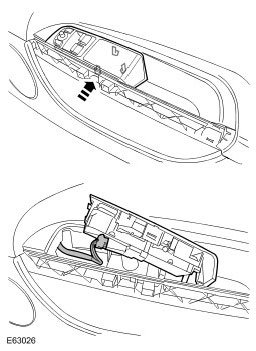

1. Remove the grab handle cover.
- Release from the 6 clips.







2. Remove the window control switch.
- Release from the 3 clips.
- Disconnect the electrical connector.







Installation

1. Install the window control switch.
- Connect the electrical connector.
- Secure in the clips.

2. Install the grab handle cover.
- Secure in the clips.
