Rear Subframe Mount: Service and Repair

Rear Subframe Rear Bushing

Special Service Tools






Forcing bolt

204-469





Receiver-bush

204-475





Replacer-bush

204-474





Remover bush

204-473





Remover support-bush

204-472

Removal
1 For additional information, refer to Rear Subframe - 4.2L/3.0L/2.7L Diesel Service and Repair

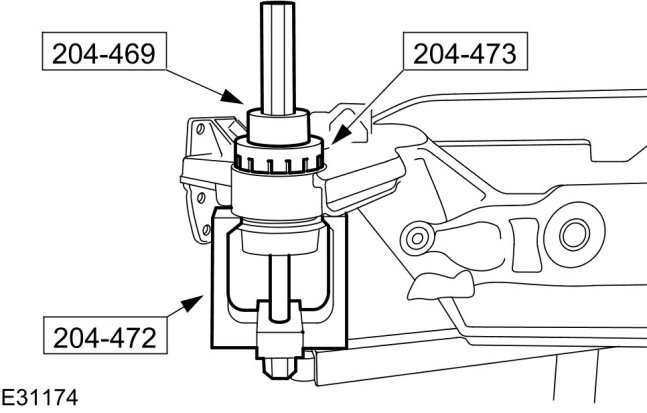

2
NOTE:
Note the orientation of the bushing before removal.


Installation

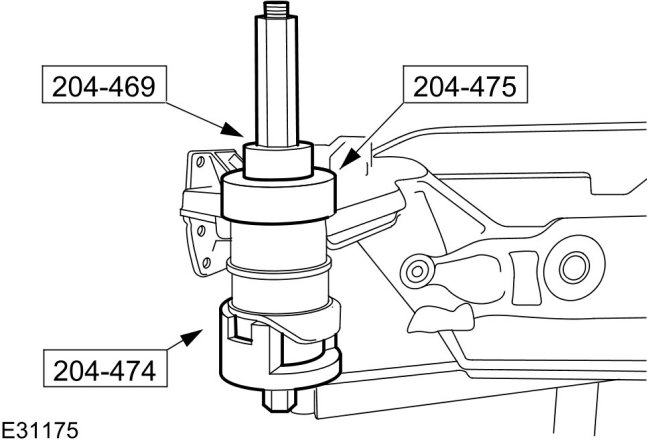

1
NOTE:
Make sure the bushing is correctly orientated.

2 For additional information, refer to Rear Subframe - 4.2L/3.0L/2.7L Diesel Service and Repair
