4.14.2 Monitoring Structure

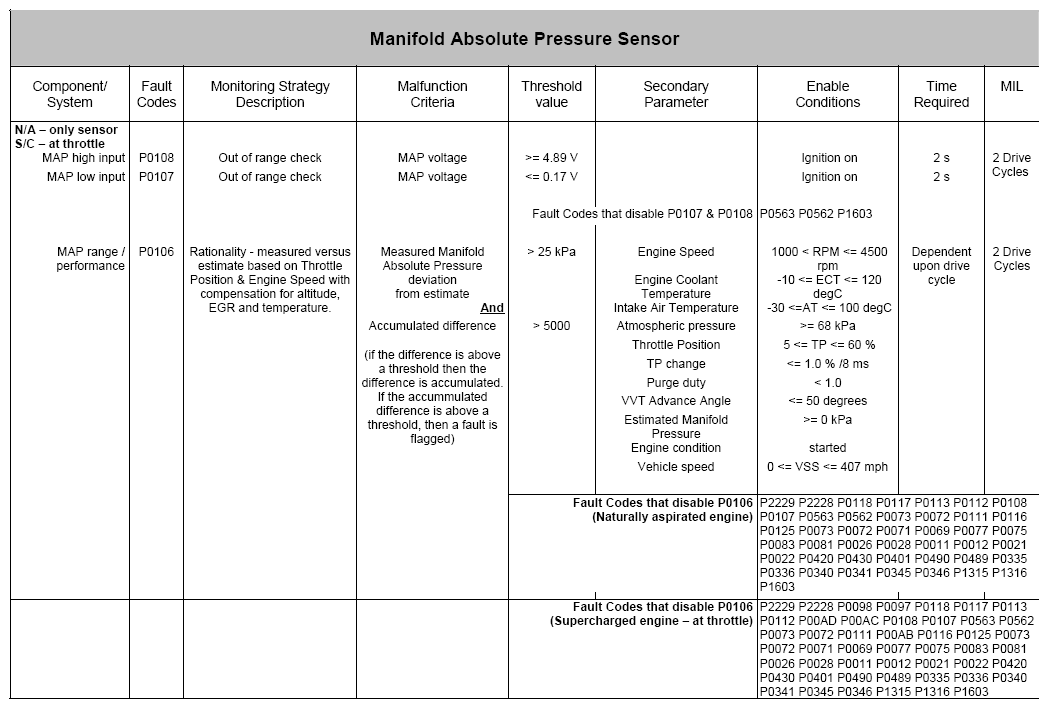

Fig 1: Manifold Absolute Pressure Sensor (P0106, P0107, P0108)
G06421709Courtesy of JAGUAR CARS, INC.

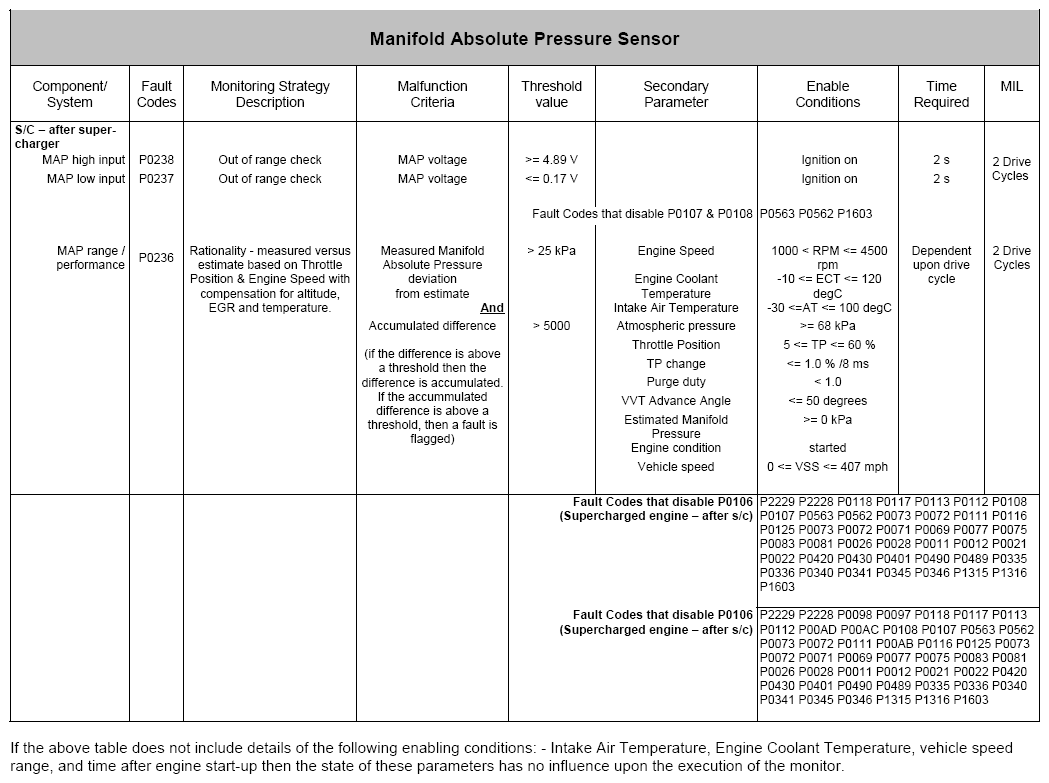

Fig 2: Manifold Absolute Pressure Sensor (P0236, P0237, P0238)
G06421710Courtesy of JAGUAR CARS, INC.
