4.15.3 Monitoring Structure

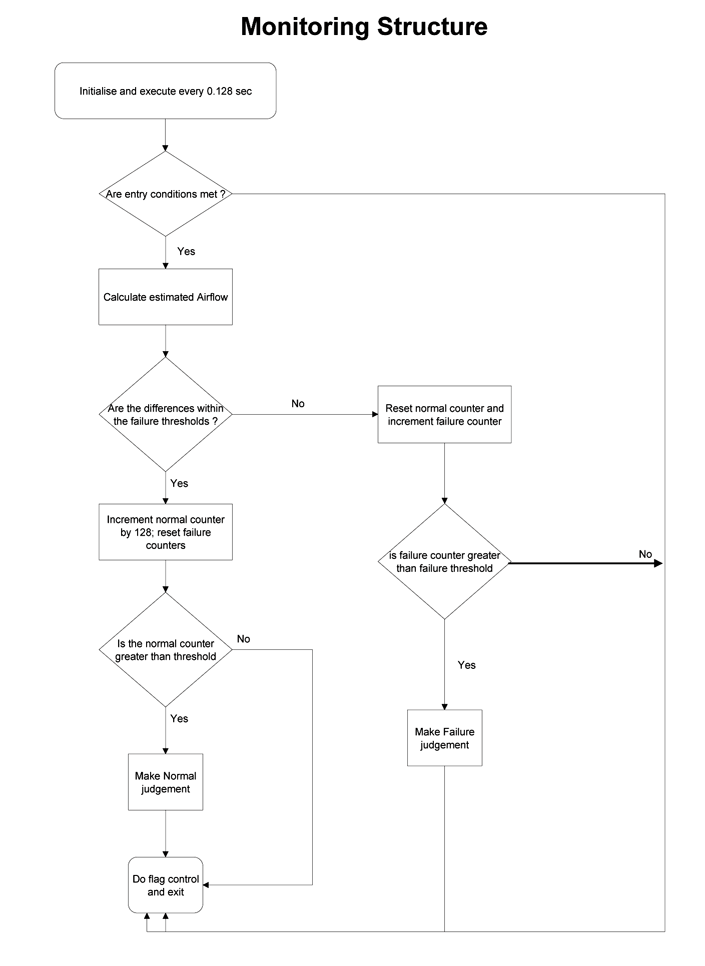

Fig 1: Monitoring Structure
G06421711Courtesy of JAGUAR CARS, INC.

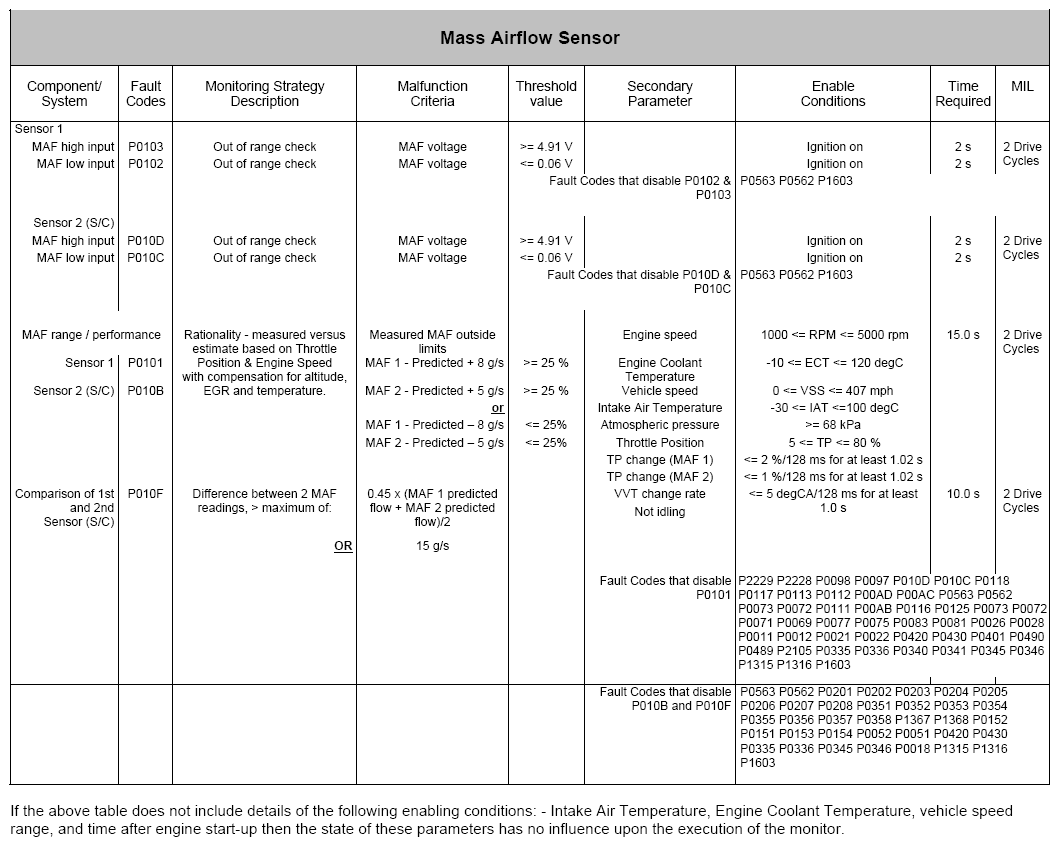

Fig 2: Mass Airflow Sensor (P010B, P010C, P010D, P010F, P0101, P0102, P0103)
G06421712Courtesy of JAGUAR CARS, INC.
