Navigation Module: Service and Repair

Navigation System Module

Removal
1 Remove the cover and disconnect the battery ground cable. For additional information, refer to Specifications

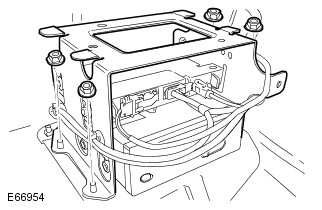

2 Release the navigation system module bracket.
- Remove the 4 nuts.

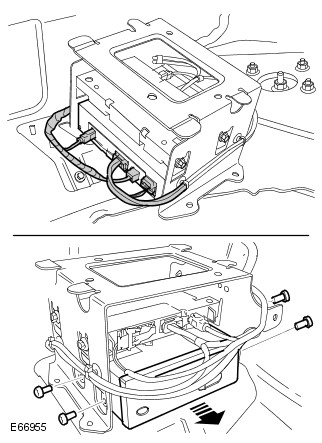

3 Remove the navigation system module.
- Disconnect the 4 electrical connectors.
- Remove the 4 Torx bolts.

Installation
1 Install the navigation system module.
- Tighten the Torx bolts to 6 Nm (4 lb.ft).
- Connect the electrical connectors.
2 Install the navigation system module bracket.
- Tighten the nuts to 10 Nm (7 lb.ft).
3 Connect the battery ground cable and install the cover. For additional information, refer to Specifications
