Keyless Entry Receiver: Service and Repair

Keyless Vehicle Antenna

Removal
1 Remove the cover and disconnect the battery ground cable. For additional information, refer to Specifications

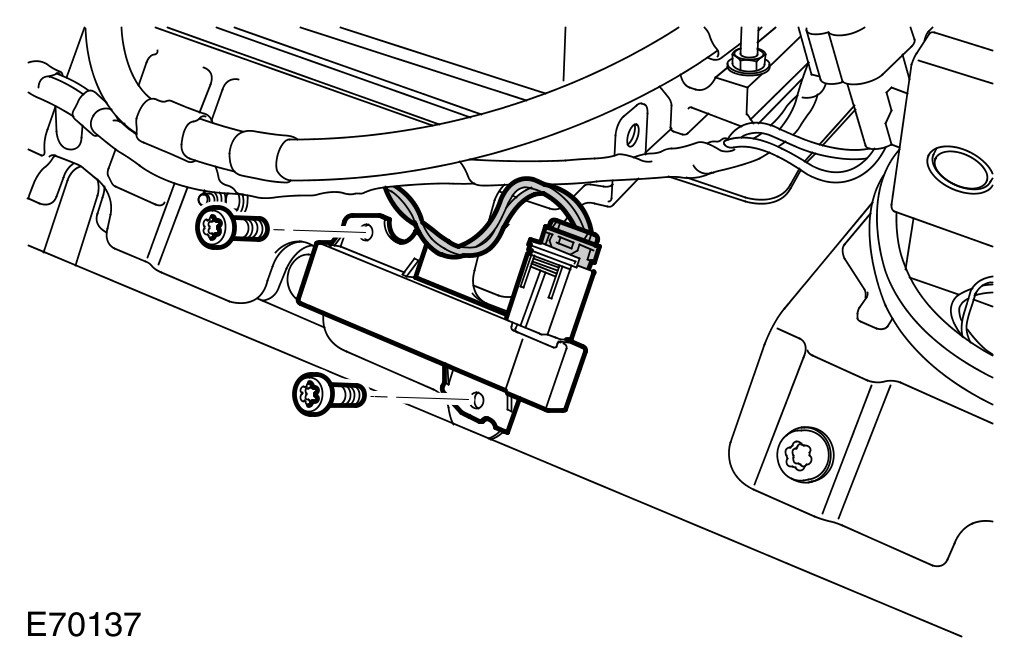

2 Remove the keyless vehicle antenna.
- Remove the 2 Torx bolts.
- Disconnect the electrical connector.

Installation
1 Install the keyless vehicle antenna.
- Connect the electrical connector.
- Tighten the Torx bolts to 3 Nm (2 lb.ft).
2 Connect the battery ground cable and install the cover. For additional information, refer to Specifications
