Distance Sensor: Service and Repair

Speed Control Sensor

Removal
1 Connect WDS to the vehicle and up-load the relevant data.
2
WARNING: Do not work on or under a vehicle supported only by a jack. Always support the vehicle on safety stands.
Raise and support the vehicle.
3 Remove the front bumper cover. For additional information, refer to Front Bumper Cover Service and Repair

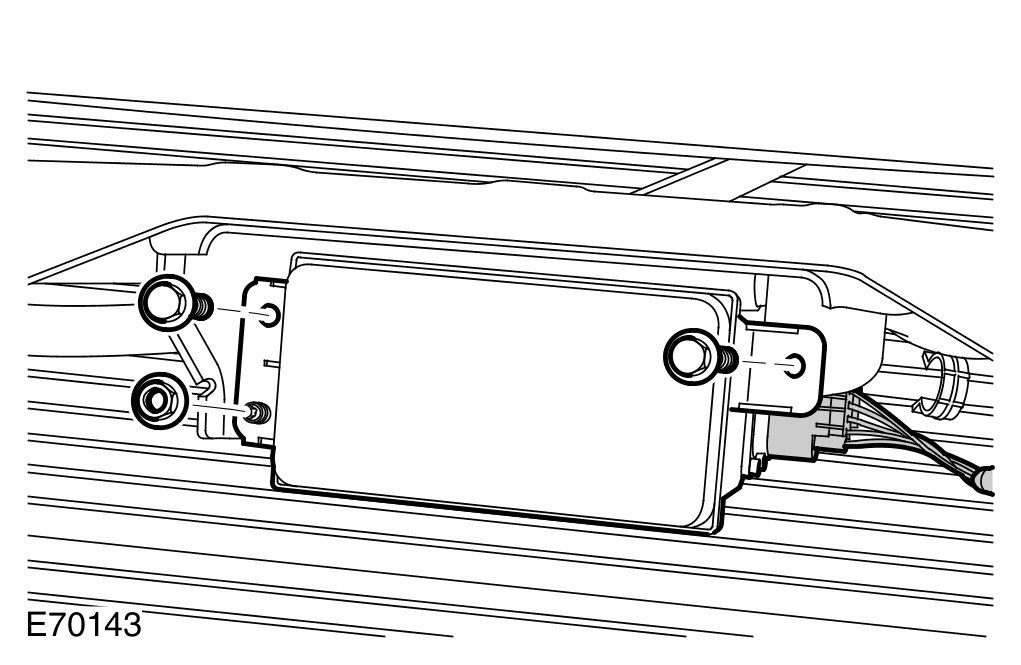

4 Remove the speed control sensor.
- Remove the 2 bolts.
- Remove the nut.
- Disconnect the electrical connector.

Installation
1 Install the speed control sensor.
- Tighten the bolts to 5 Nm (4lb.ft).
- Install the speed sensor level adjustment lock nut and tighten to 5 Nm (4lb.ft).
- Connect the electrical connector.
2 Check and adjust the speed sensor leveling. For additional information, refer to Speed Control Sensor Adjustment Speed Control Sensor Adjustment
3 With assistance, install the front bumper cover. For additional information, refer to Front Bumper Cover Service and Repair
4 Using WDS download the data previously up-loaded.
