Convertible Top Control Module: Service and Repair

Convertible Top Module

Removal
1 Remove the cover and disconnect the battery ground cable. For additional information, refer to Specifications
2 Make the SRS system safe. For additional information, refer to Supplemental Restraint System (SRS) Depowering and Repowering
3 Remove the LH roll over protection unit. For additional information, refer to Roll Over Protection Unit Service and Repair

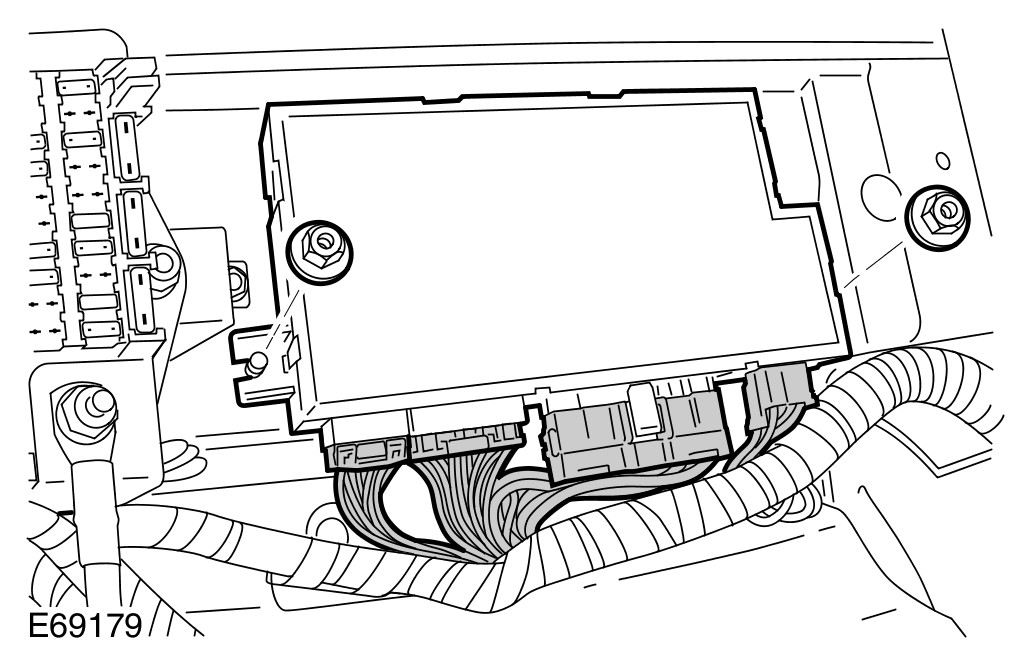

4 Remove the convertible top module.
- Disconnect the 4 electrical connectors.
- Remove the 2 nuts.

Installation
1 Install the convertible top module.
- Tighten the nuts to 10 Nm (7 lb.ft).
- Connect the electrical connectors.
2 Install the LH roll over protection unit. For additional information, refer to Roll Over Protection Unit Service and Repair
3 Connect the battery ground cable and install the cover. For additional information, refer to Specifications
