Control Module: Service and Repair

Pedestrian Protection Module

Removal

NOTE:
The pedestrian protection module must be renewed if the system has deployed on 3 occasions.
1 Make the pedestrian protection system safe.
2 Remove the front LH fender splash shield. For additional information, refer to Fender Splash Shield Fender Splash Shield

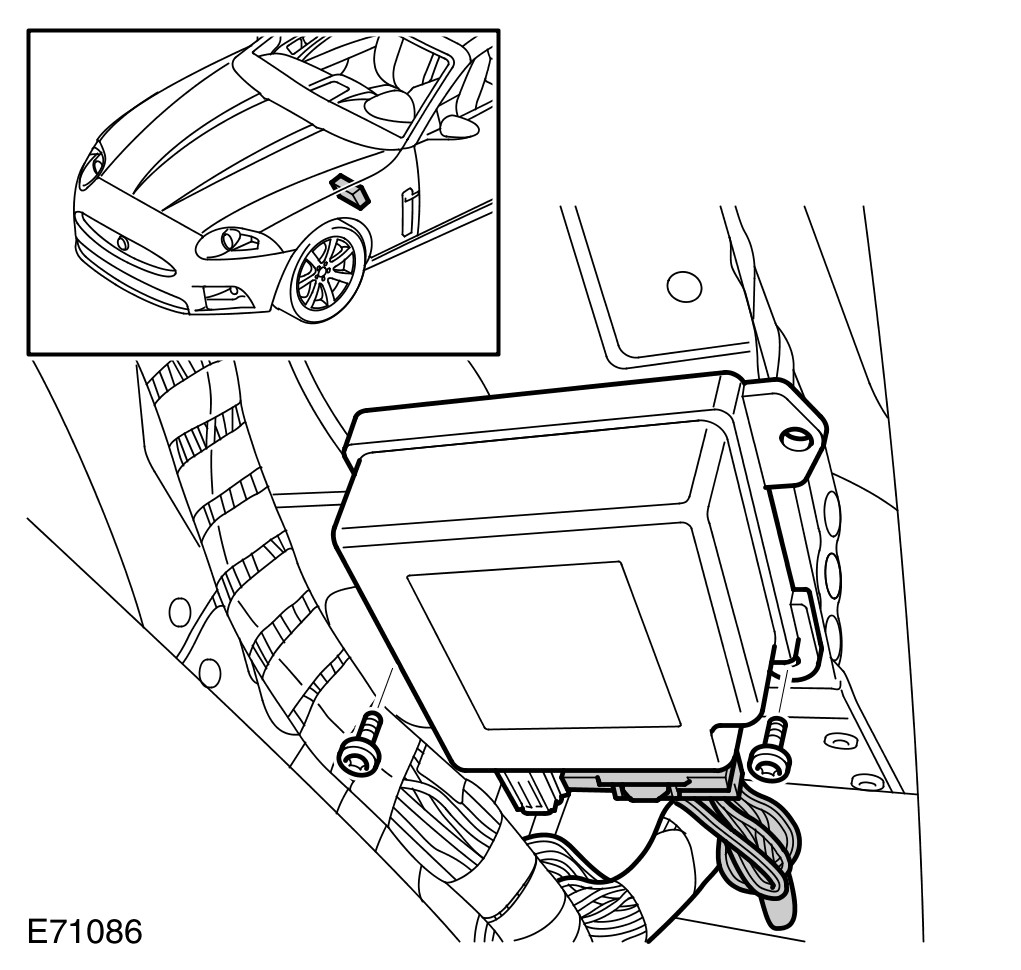

3 Remove the pedestrian protection module.
- Remove and discard the 2 Torx bolts.
- Disconnect the electrical connector.

Installation
1 Install the pedestrian protection module.
- Connect the electrical connector.
- Tighten the new Torx bolts to 10 Nm (7 lb.ft).
2 Install the front LH fender splash shield. For additional information, refer to Fender Splash Shield Fender Splash Shield
3 Using WDS, configure a new module.
