Home >> Jaguar >> 2012 >> XF (X250) V8-5.0L SC >> Repair and Diagnosis >> Diagrams >> Connector Views >> Combination Switch >> C2LF27 Switch-Steering Column-Lighting
April 5, 2026: LEMON Manuals is launched! Read the announcement.

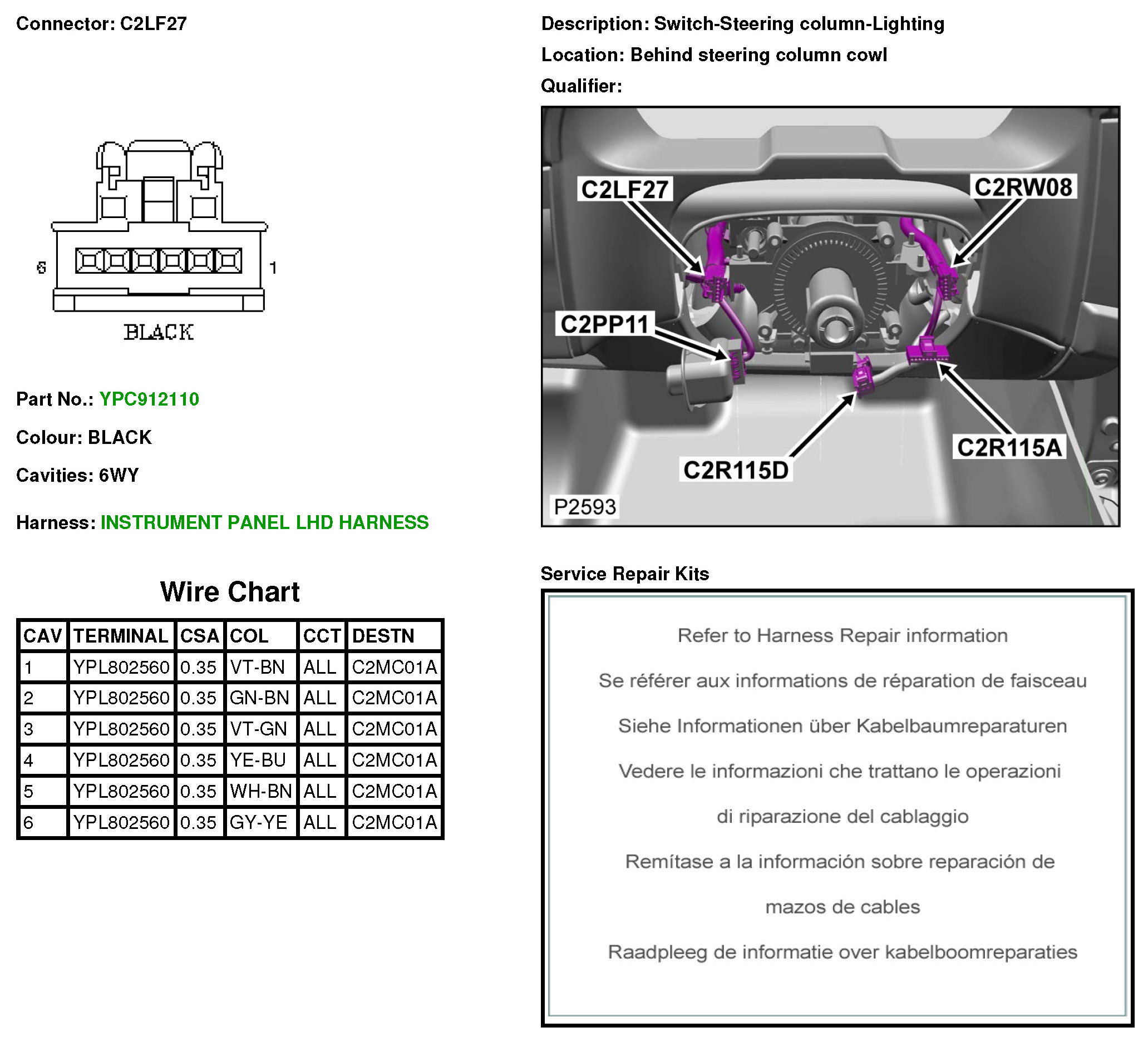

C2LF27 Switch-Steering Column-Lighting



C2LF27
