Home >> Jaguar >> 2012 >> XF (X250) V8-5.0L SC >> Repair and Diagnosis >> Diagrams >> Connector Views >> Memory Positioning Switch >> CAPS15 Switch-Seat Memory-Driver
July 1: So it begins. Don't worry, this is not in the correct legal jurisdiction!

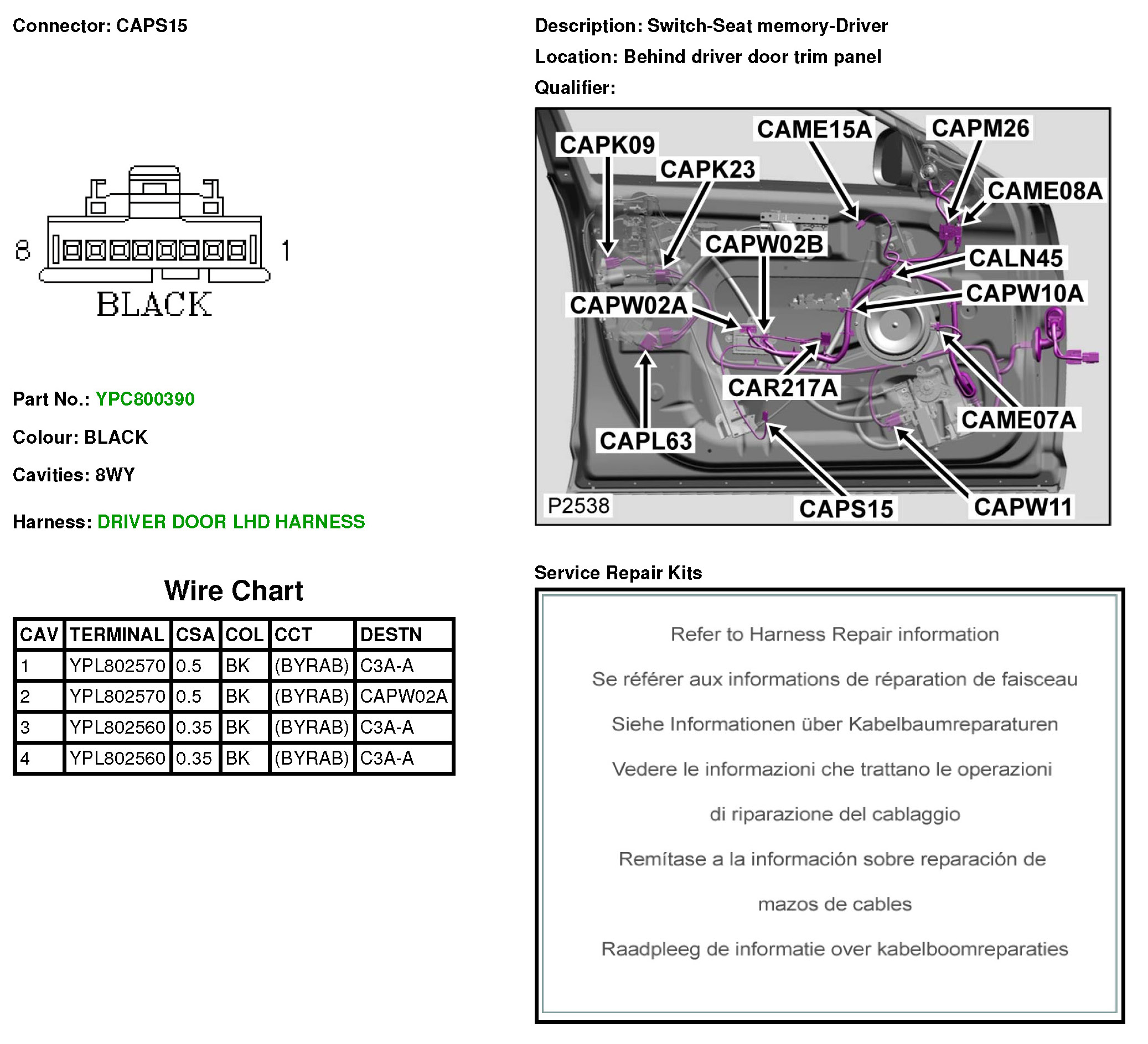

CAPS15 Switch-Seat Memory-Driver



CAPS15
