Telematics Troubleshooting Guide (SSM73242)
Publication date: 2017-02-27Reference number: SSM73242
TELEMATICS TROUBLESHOOTING GUIDE
TECHNICAL SERVICE BULLETIN
Reference Number(s): SSM73242, Date of Issue:
27-Feb-2017
| JAGUAR: | F-PACE/X761; F-TYPE/X152; XE/X760; XF/X260; XJ/X351 |
| SECTION: | Electrical |
SERVICE INFORMATION
Symptom 207000 Entertainment Systems

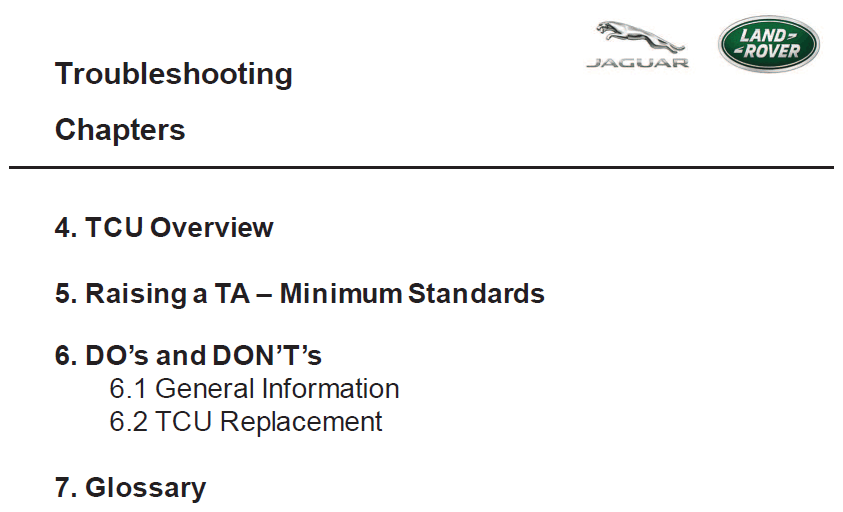

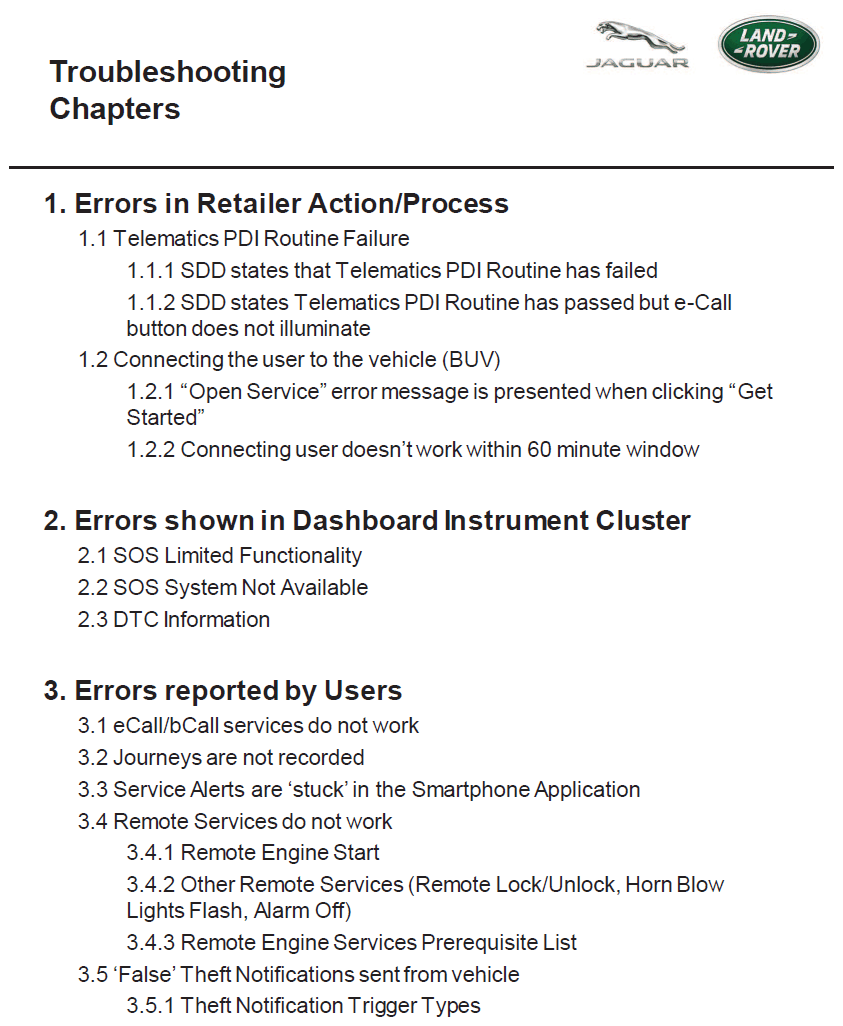

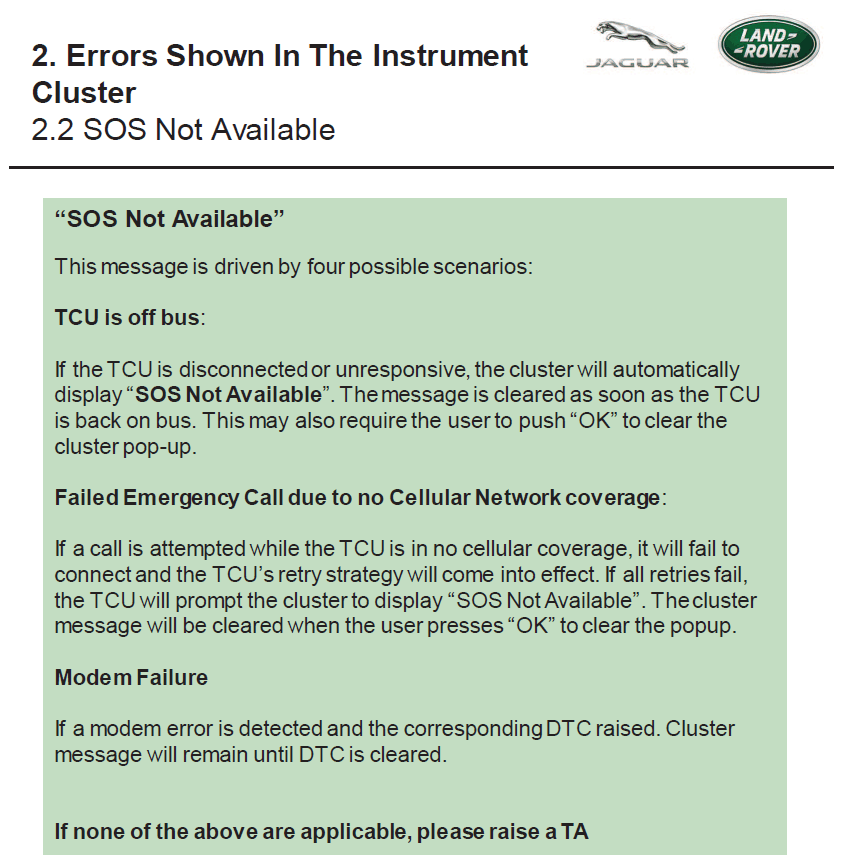

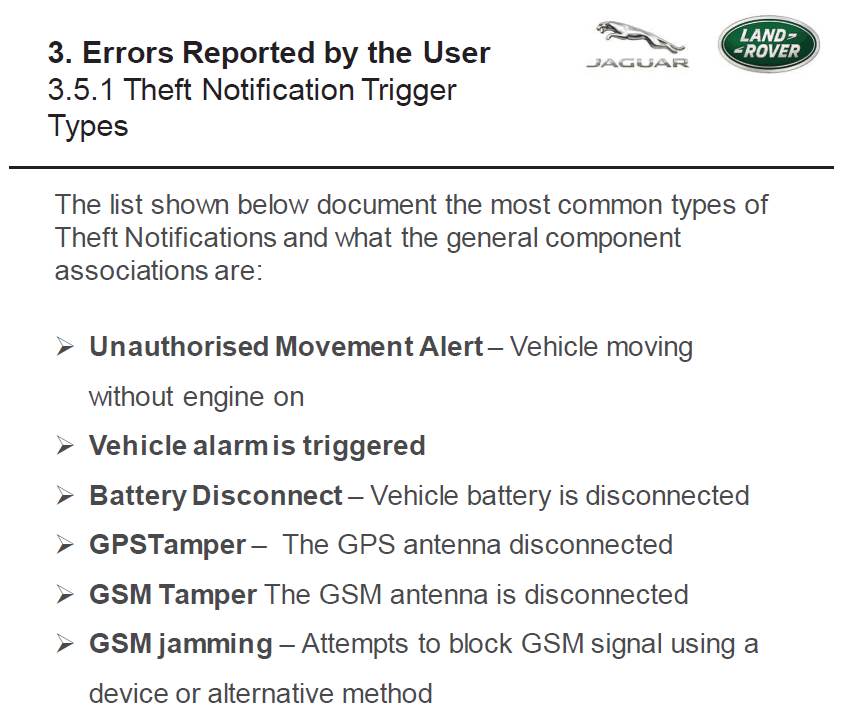

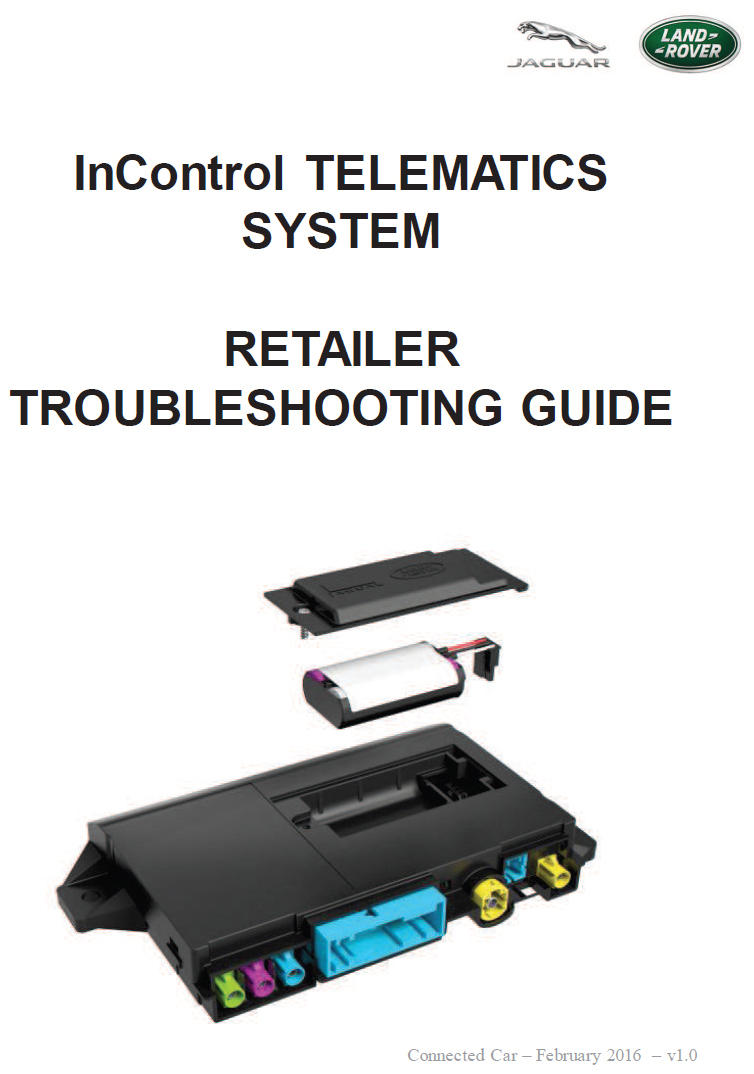

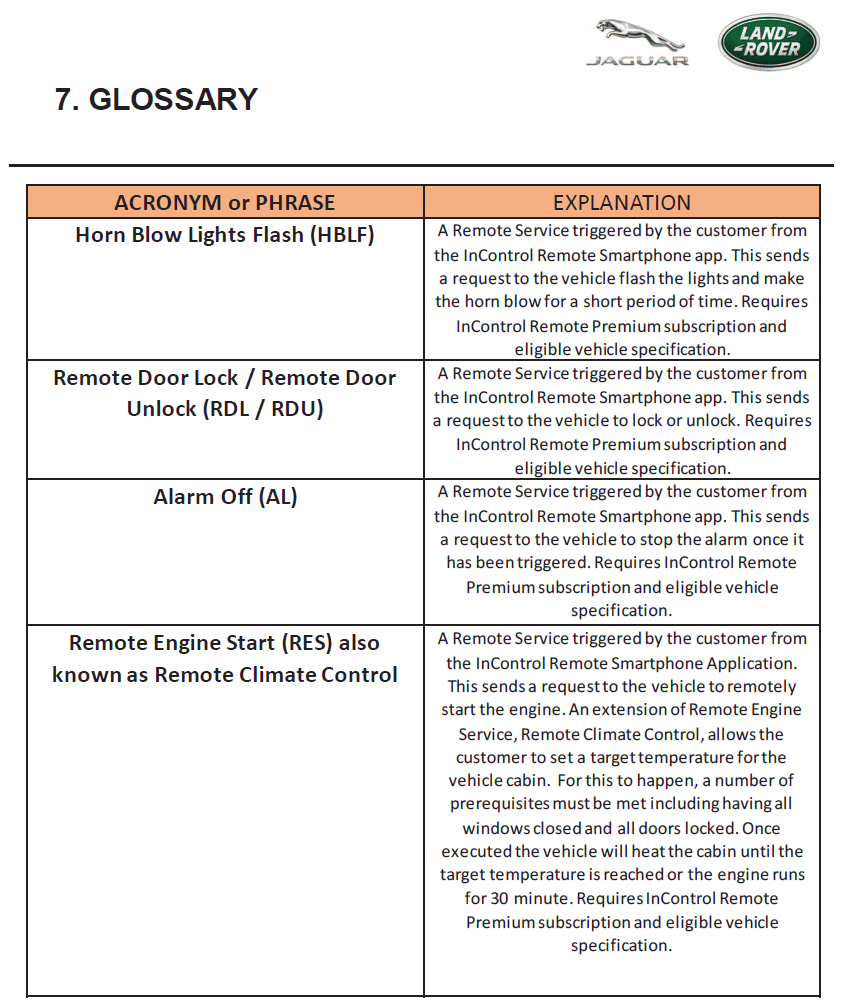

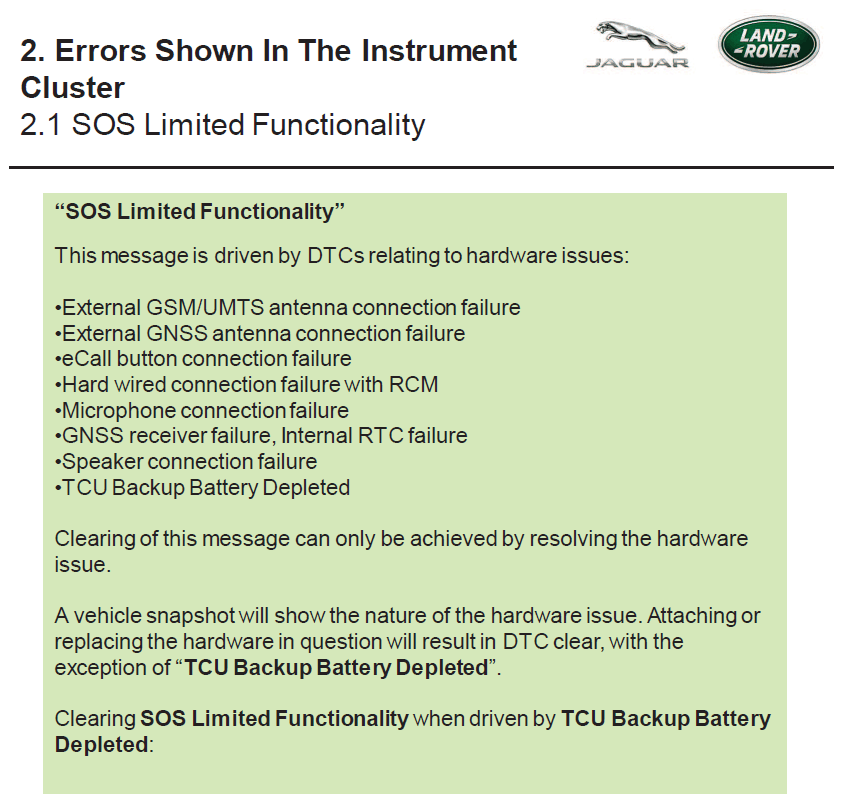

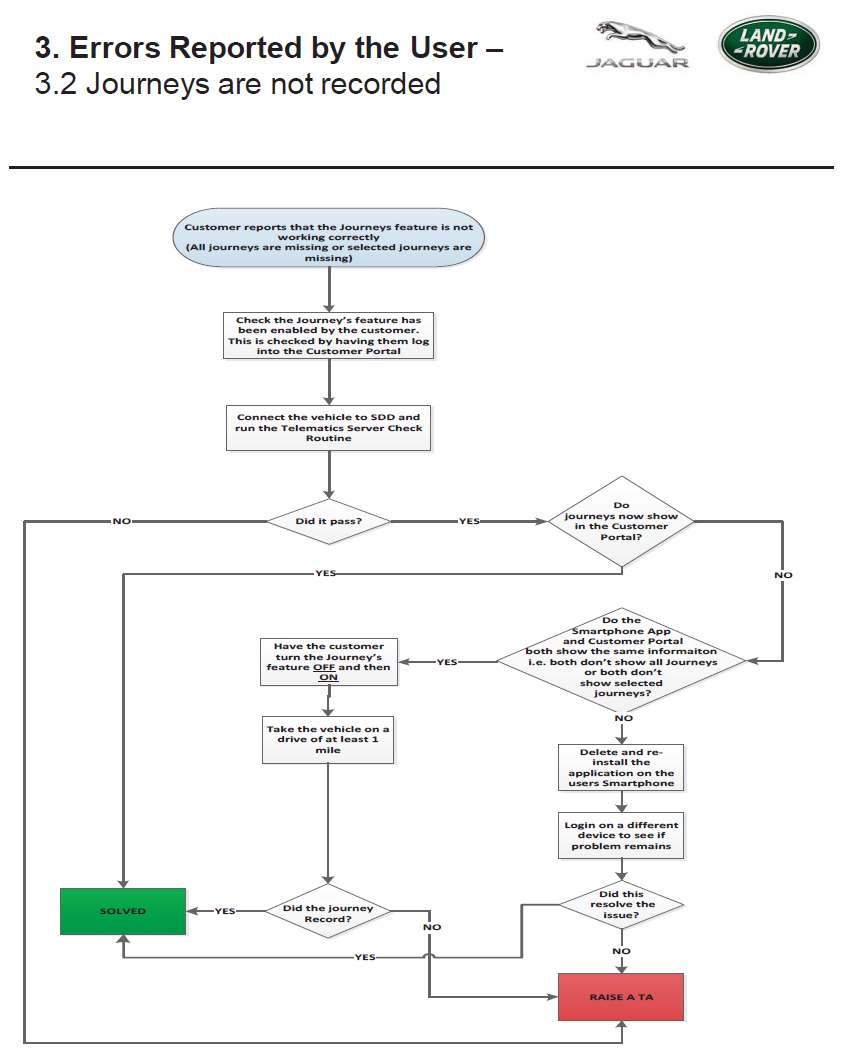

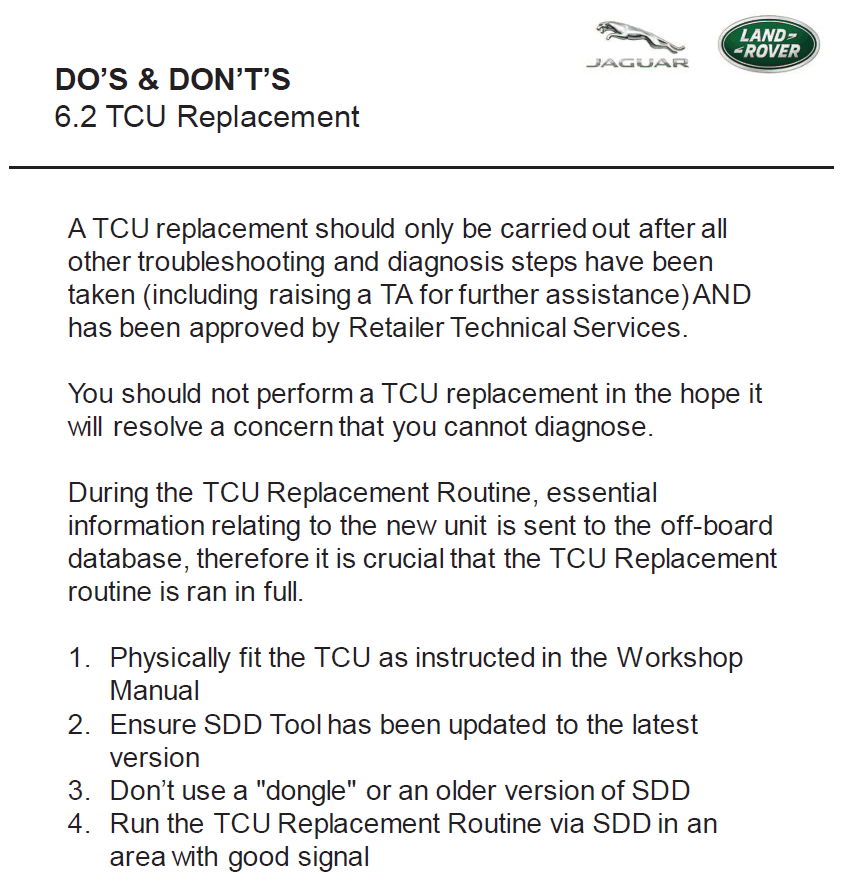

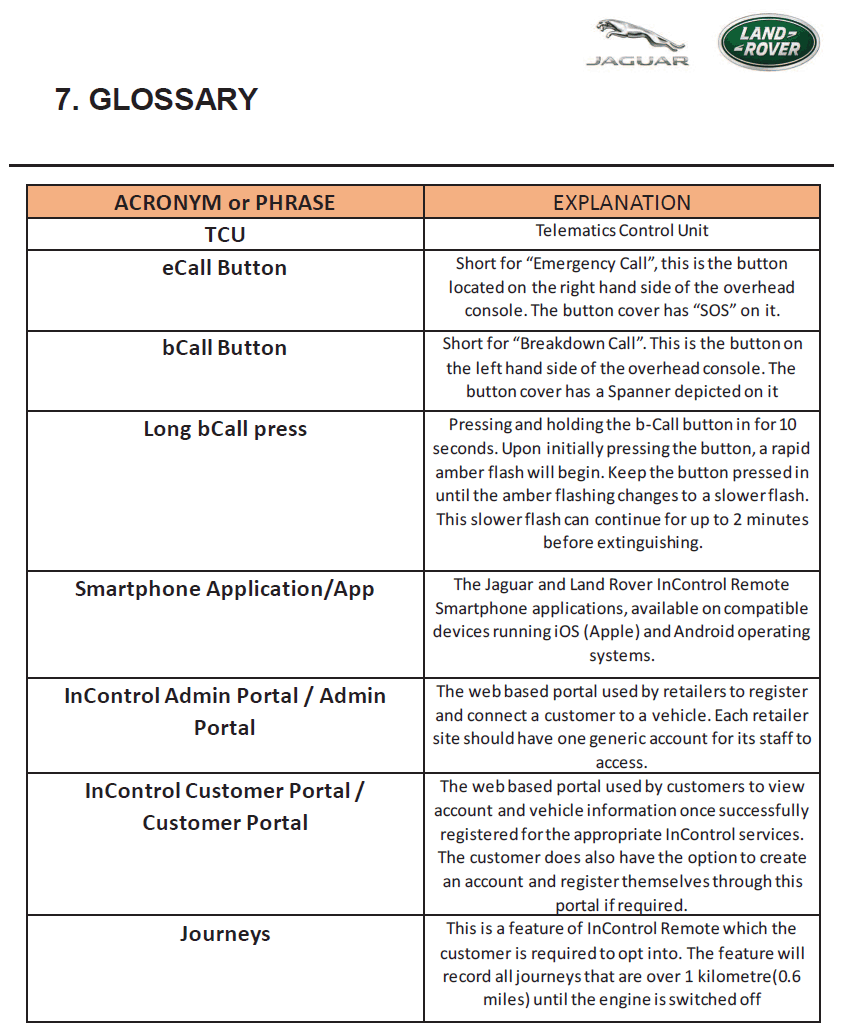

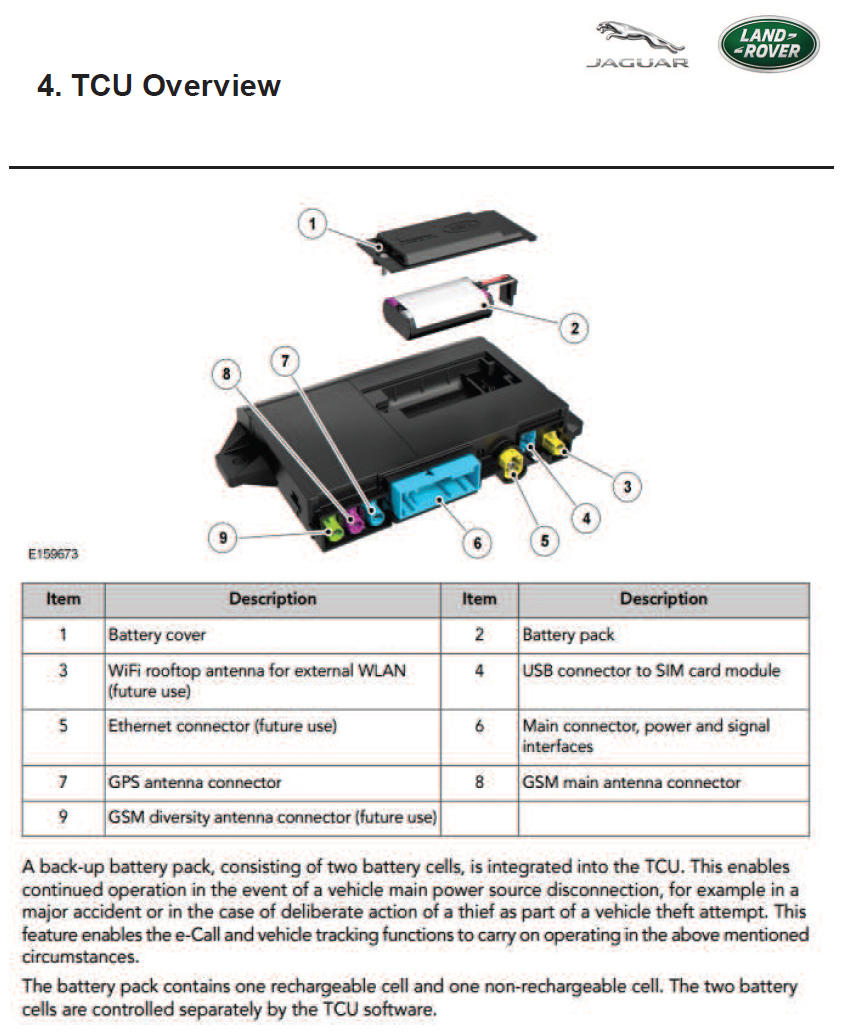

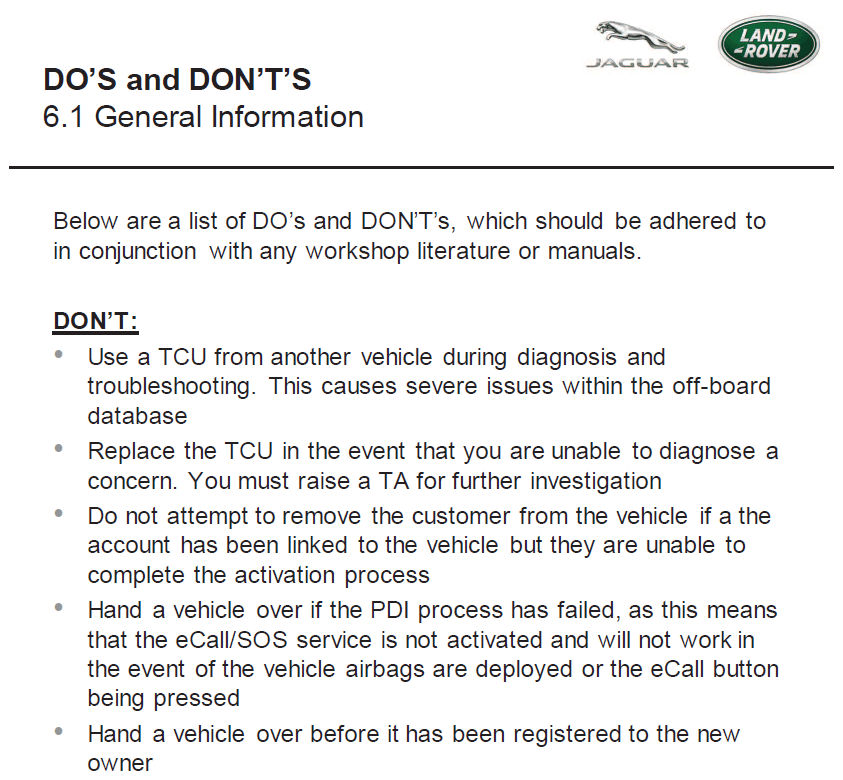

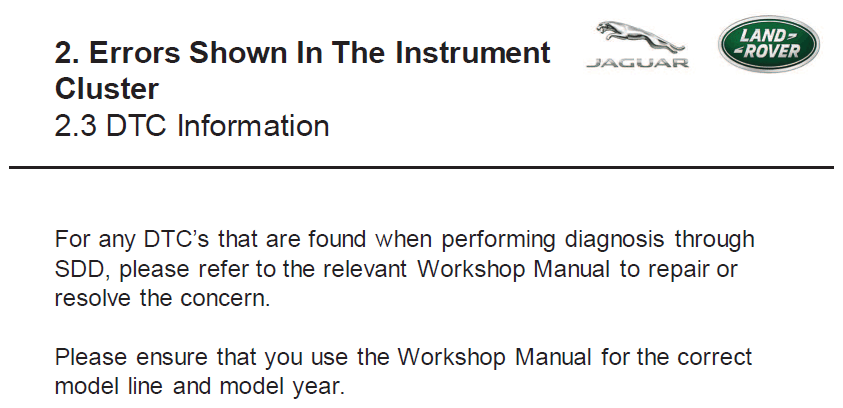

Attachments Retailer Troubleshooting Guide Telematics TCU.pdf (Retailer Troubleshooting Guide Telematics TCU.pdf)
ISSUE
Ability to correctly diagnose telematic issues.
CAUSE
For information only, see Action.
ACTION
Please refer to the attachment.
NOTE:
JLR will issue an update to the Work Shop Manual in TOPIx.
Technicians - Please rate this SSM and provide comments so that future communications can be improved.
1 = Poor - Basic information provided - The SSM does not help me resolve the customer concern.
3 = Average - Adequate information provided - The SSM partially helps me resolve the customer concern.
5 = Excellent - All required information provided to resolve the customer concern.
