Home >> Jaguar >> 2012 >> XK (X150) V8-5.0L SC >> Repair and Diagnosis >> Diagrams >> Connector Views >> Antenna Control Module >> TM078 Module-Signal Splitter
April 5, 2026: LEMON Manuals is launched! Read the announcement.

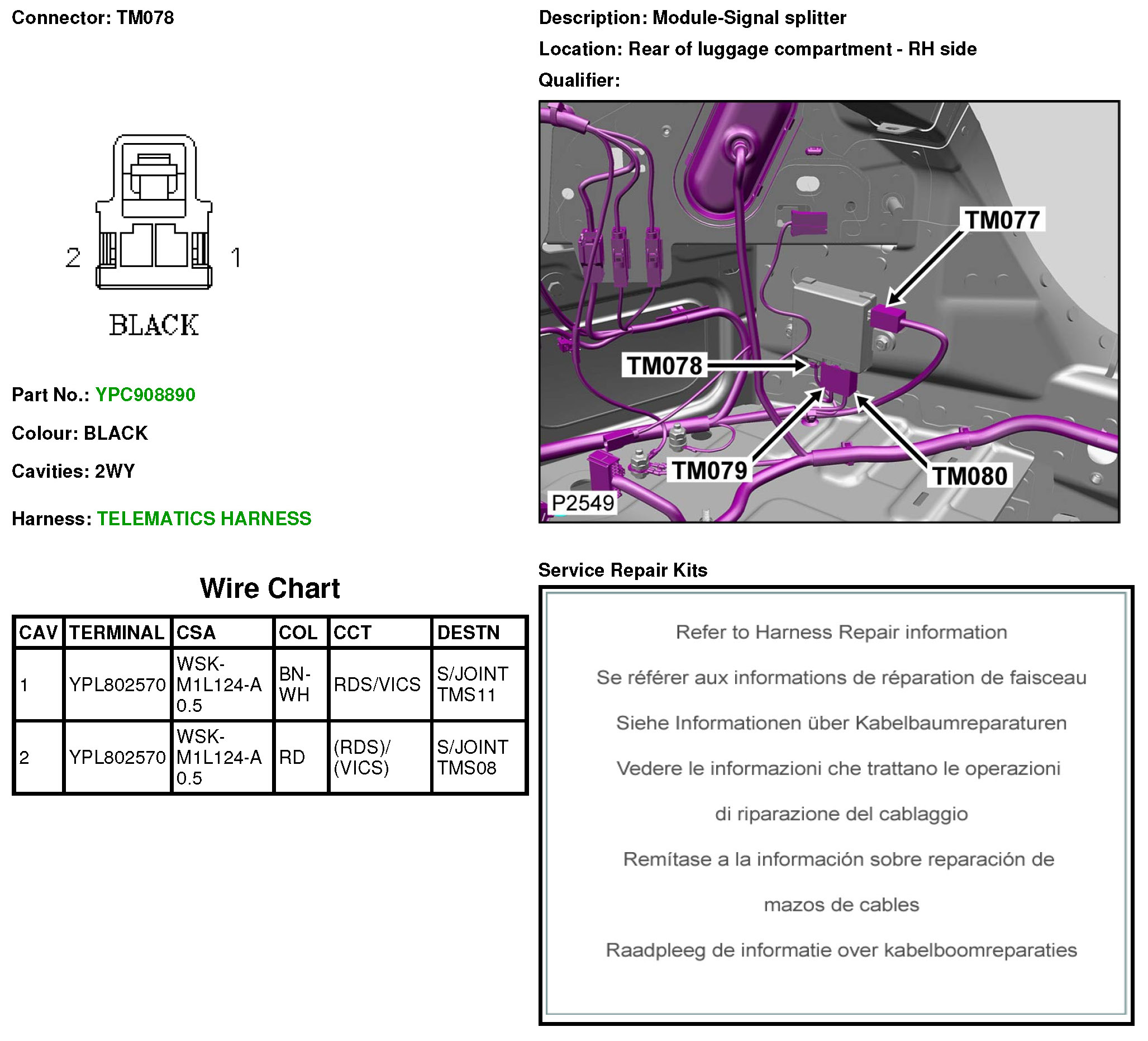

TM078 Module-Signal Splitter



TM078
