Control Module HVAC
>>
AC002 ECU-Automatic-Temperature Control
April 5, 2026:
LEMON Manuals is launched!
Read the announcement.

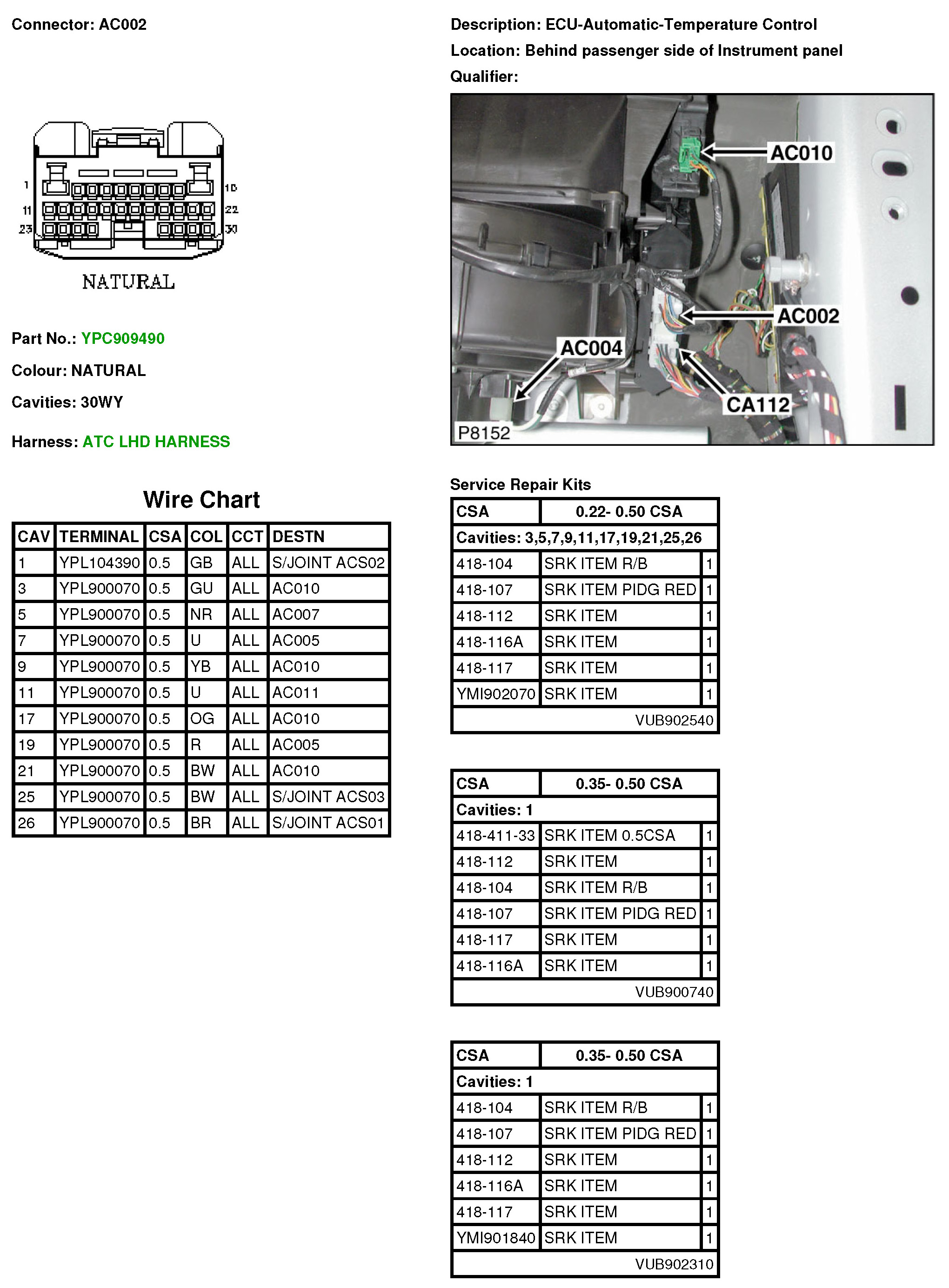

AC002 ECU-Automatic-Temperature Control
AC002
