XK (X150) V8-5.0L SC
>>
Repair and Diagnosis
>>
Diagrams
>>
Connector Views
>>
Parking Assist Distance Sensor
>>
RB005 Sensor-Parking aid-Inner-Rear-RH
April 5, 2026:
LEMON Manuals is launched!
Read the announcement.

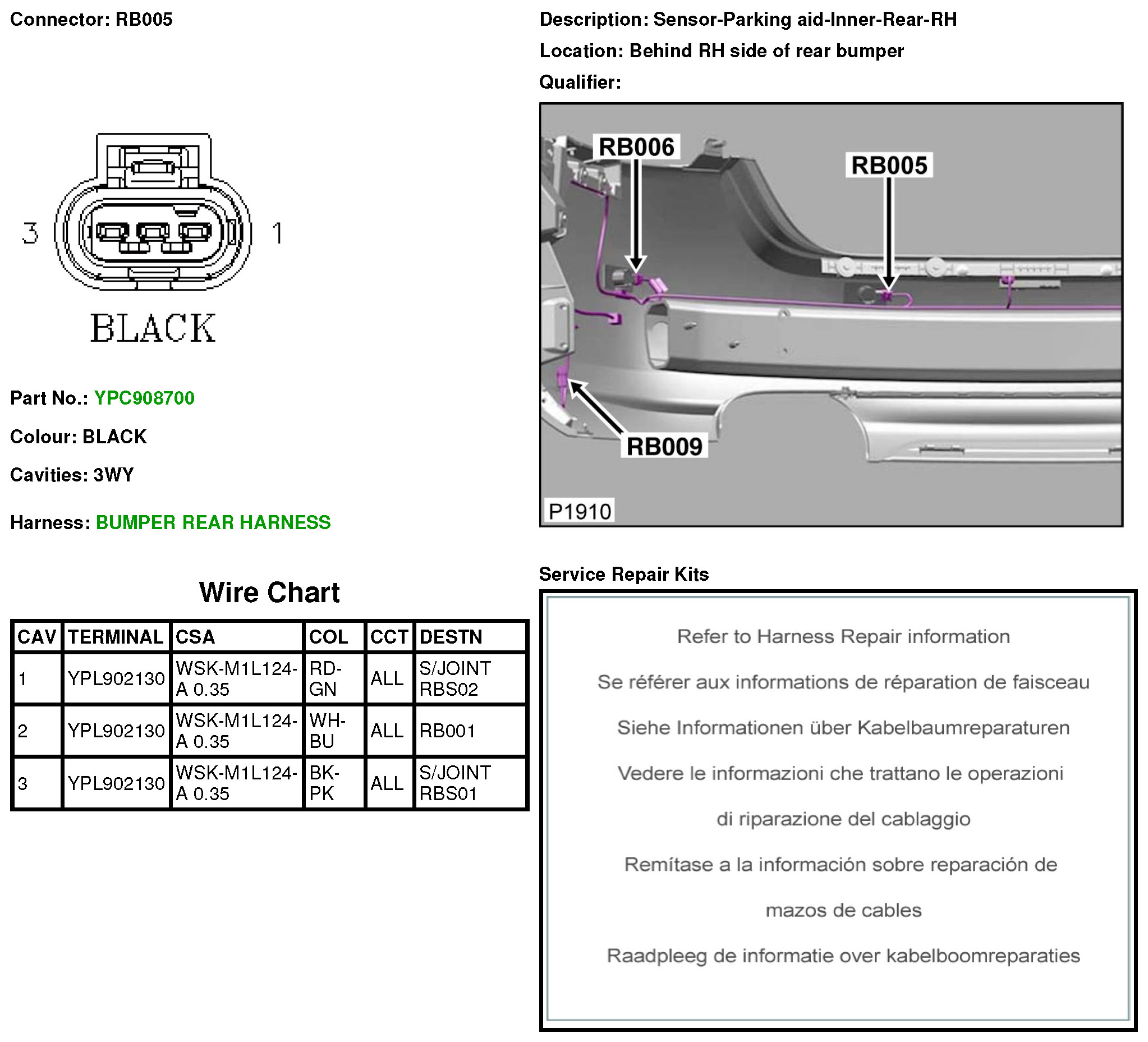

RB005 Sensor-Parking aid-Inner-Rear-RH
RB005
