Home
>>
Jaguar
>>
2012
>>
XK (X150) V8-5.0L SC
>>
Repair and Diagnosis
>>
Diagrams
>>
Connector Views
>>
Ride Height Sensor, Suspension Control
>>
CV018 Sensor-Height-Rear-LH
April 5, 2026:
LEMON Manuals is launched!
Read the announcement.

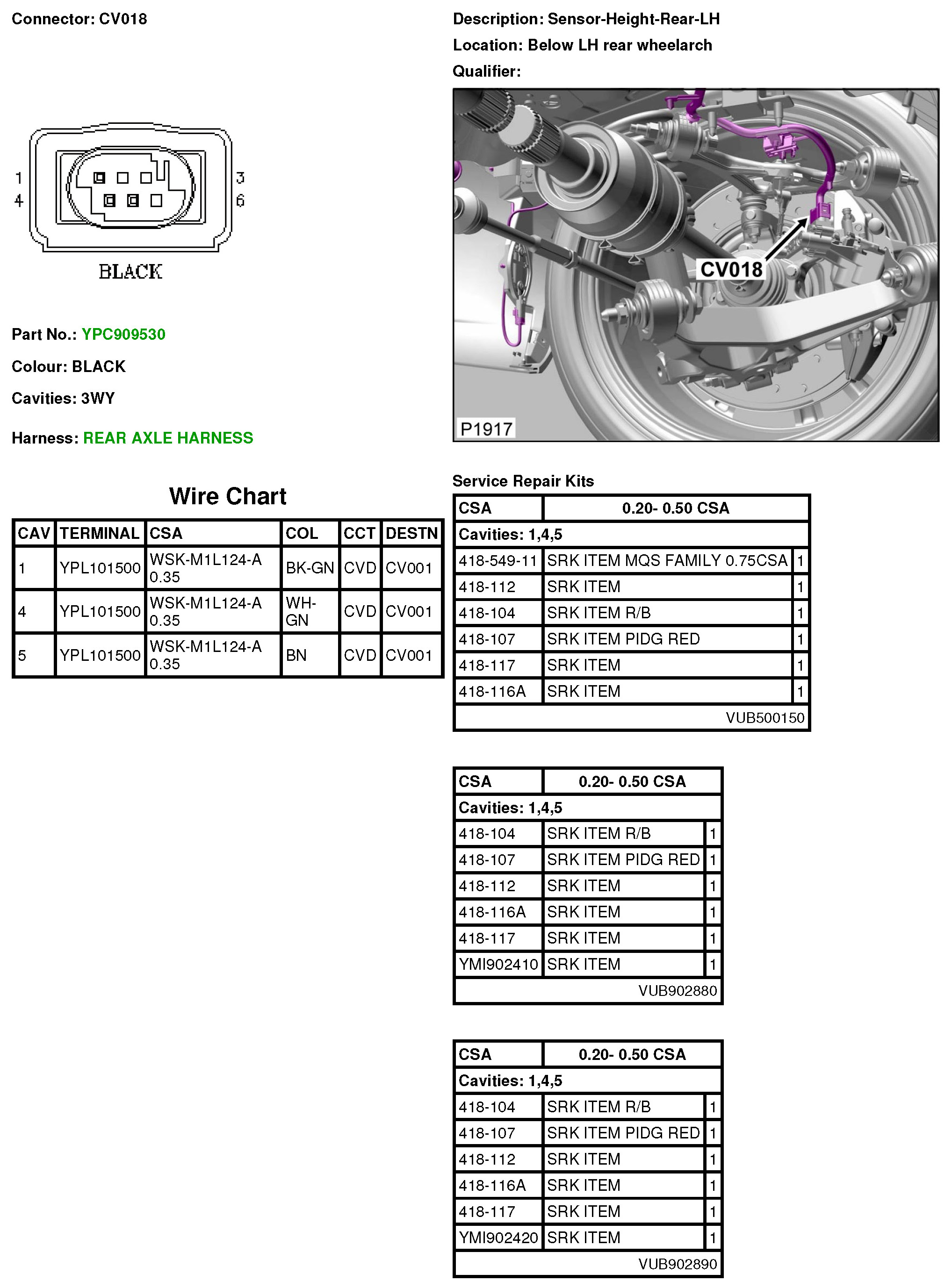

CV018 Sensor-Height-Rear-LH
CV018
