Ride Height Sensor, Suspension Control
>>

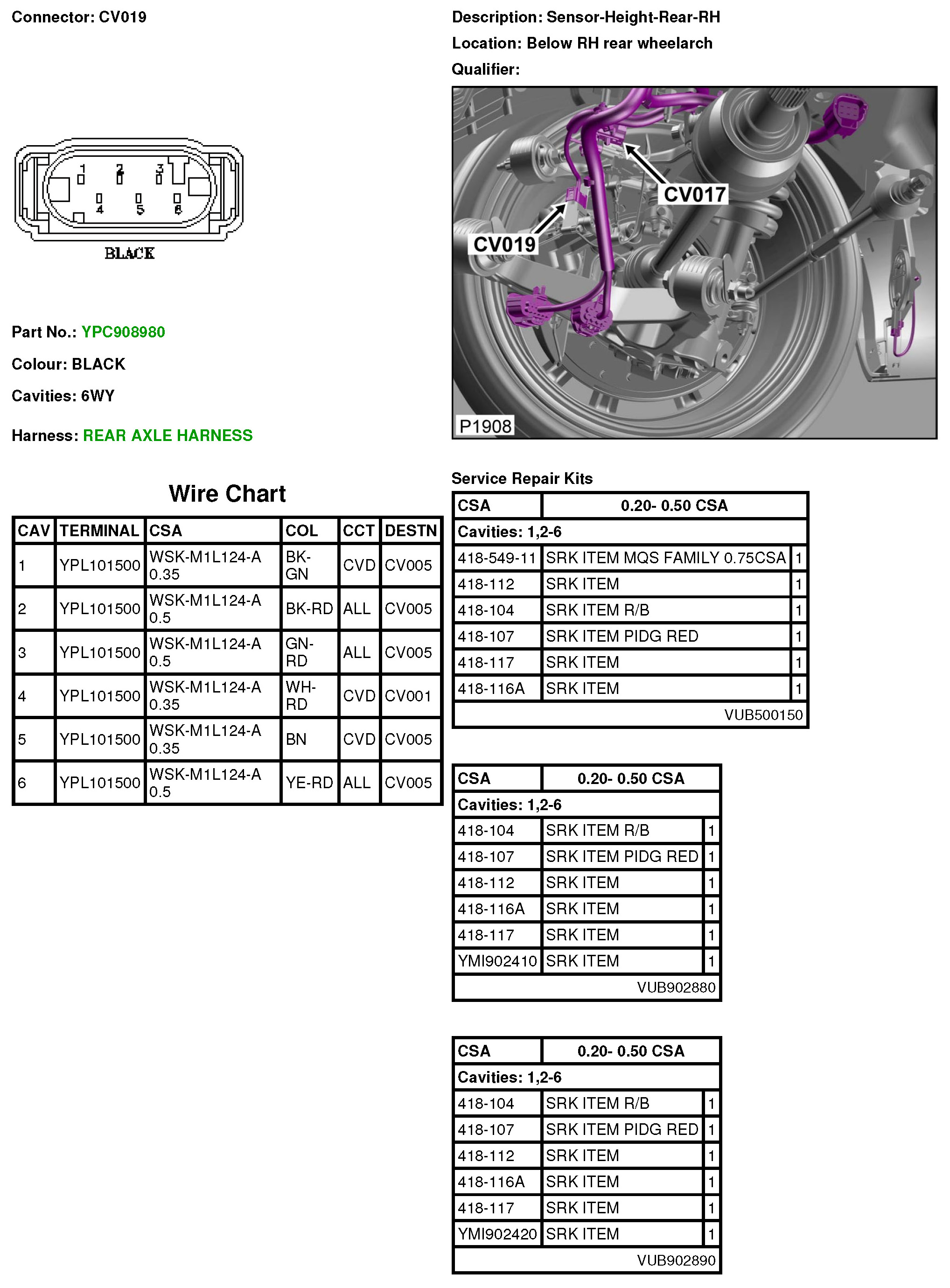

CV019 Sensor-Height-Rear-RH
April 5, 2026:
LEMON Manuals is launched!
Read the announcement.
CV019 Sensor-Height-Rear-RH
CV019
