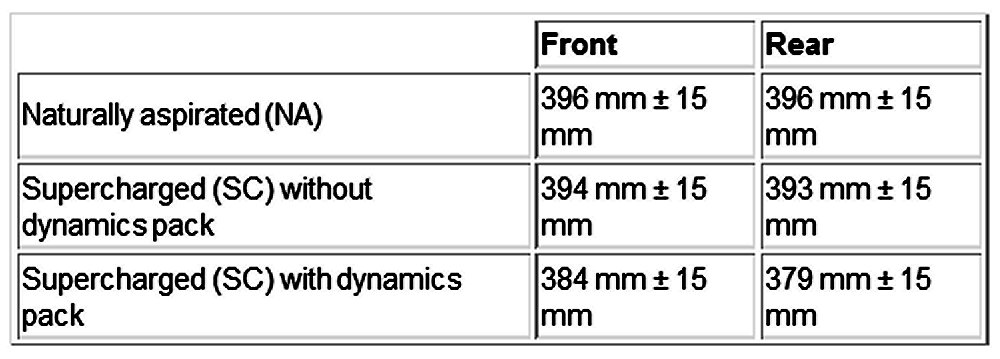

Vehicle Ride Height

Vehicle Ride Height






NOTE:
- All the above figures are measured at "curb" height - all fluids at full and a full fuel tank.
- Tires must be inflated to normal pressure.
- Rear thrust angle = (LH toe - RH toe) divided by 2.
- Ride height is measured from the centre of wheel to the apex of the wheel arch, through the wheel center line.
