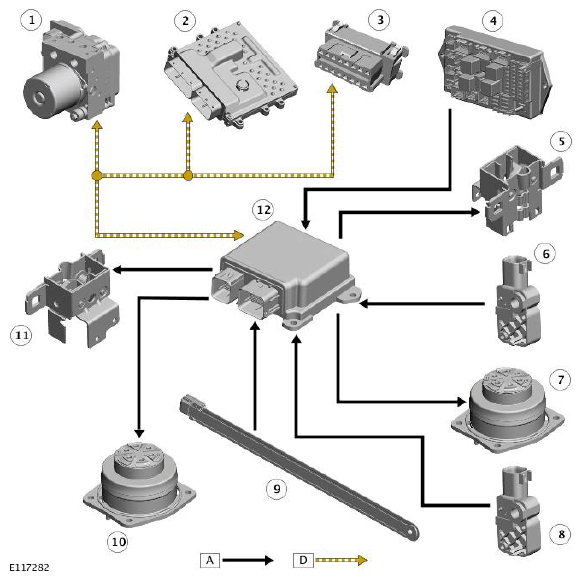

Control Diagram
NOTE:
A = Hardwired; D = High speed CAN bus
| ITEM | DESCRIPTION |
|---|---|
| 1 | ABS (anti-lock brake system) module |
| 2 | ECM (engine control module) |
| 3 | Diagnostic socket |
| 4 | AJB (auxiliary junction box) |
| 5 | Hood latch |
| 6 | Accelerometer |
| 7 | Hood actuator |
| 8 | Accelerometer |
| 9 | PCS |
| 10 | Hood actuator |
| 11 | Hood latch |
| 12 | Pedestrian protection system control module |
