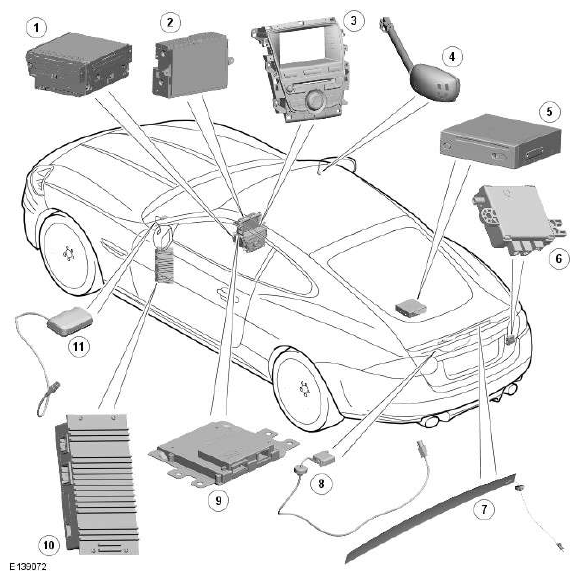

Component Location

G11523947
ITEM DESCRIPTION
1 Integrated Audio Module
2 Touch Screen Display
3 Integrated Control Panel
4 Microphone
5 Navigation computer
6 FM antenna signal splitter
7 AM/FM antenna
8 GPS antenna
9 Information and entertainment control module
10 Audio amplifier
11 Vehicle Information and Communication Systems (VICS) beacon antenna (Japan only)
