COMPACT KEY HANDSET - LOWER-LEVEL SERVICE REPAIR

TECHNICAL SERVICE BULLETIN

Reference Number(s): JTB00343NAS4, Date of Issue: 09 SEP 2016

JAGUAR:	2014 Onwards F-TYPE (X152); 2013-2015 XF (X250); 2013 Onwards XJ Range (X351)
SECTION:	501-14
VIN:	K00003 Onwards; S48437-U88785; V34340 Onwards

AFFECTED VEHICLE RANGE

F-TYPE (X152)

Model Year: 2014 Onwards

VIN: K00003 Onwards

Assembly Plant: Castle Bromwich

XF (X250)

Model Year: 2013-2015

VIN: S48437-U88785

Assembly Plant: Castle Bromwich

XJ Range (X351)

Model Year: 2013 Onwards

VIN: V34340 Onwards

Assembly Plant: Castle Bromwich

MARKETS

NAS

CONDITION SUMMARY

Situation: The face of the compact key handset may peel away from the handset main body or the handset case may be bulging.

Cause: This may be caused by the handset manufacturing process.

NOTE: Replace only the affected compact key handset; it is not necessary to replace both handsets. All customer handsets must match after the conclusion of the repair.

Action: Should the customer express this concern, follow the Service Instruction outlined below.

PARTS

PARTS DESCRIPTION CHART

C2D39384	Compact key kit [gloss finish]	1
C2D39385	Compact key kit [matte finish]	1

TOOLS

No Tools Required

WARRANTY

NOTE: Repair procedures are under constant review, and therefore times are subject to change; those quoted here must be taken as guidance only. Always refer to TOPIx to obtain the latest repair time.

NOTE: DDW requires the use of causal part numbers. Labor only claims must show the causal part number with a quantity of zero.

WARRANTY INFORMATION

DESCRIPTION	SRO	TIME (HOURS)	CONDITION CODE	CAUSAL PART
Casing - Handset/Compact key - Renew - One - F-TYPE	86.52.44	0.1	49	T2R10494
Casing - Handset/Compact key - Renew - One - XF, XJ	86.52.44	0.1	49	C2D18085

NOTE: Normal Warranty procedures apply.

SERVICE INSTRUCTION

NOTE: Replace only the affected compact key handset; it is not necessary to replace both handsets. All customer handsets must match at the conclusion of the repair.

Identify the type of compact key handset currently fitted [gloss finish or matte finish] to the vehicle to ensure a like-for-like replacement handset is fitted.
NOTE: Refer to SSM71619 [Compact key low level repair, animation of process] to view the animation file.
Remove the chrome cap; place to one side.

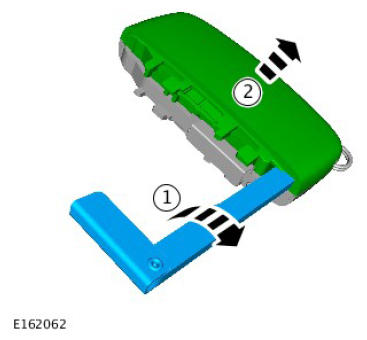

Remove the key blade.

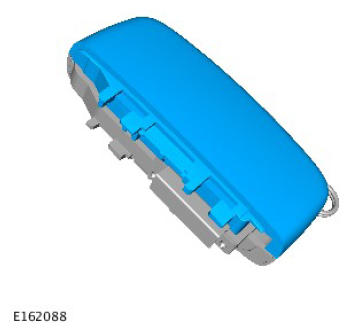

Using the key blade, remove and discard the lower case.

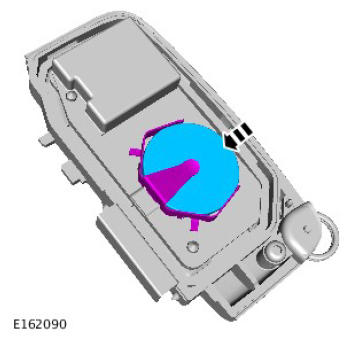

Remove the battery from the upper case.

CAUTION: Make sure the Printed Circuit Board [PCB] is not damaged when removing the black anti-tamper cover. If the copper coil antenna is damaged, the unit will be unserviceable.

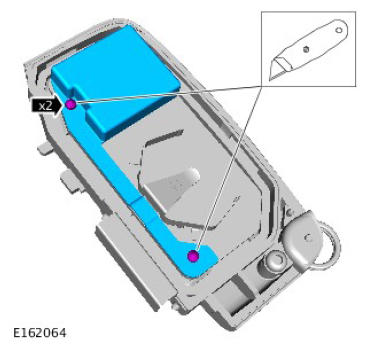

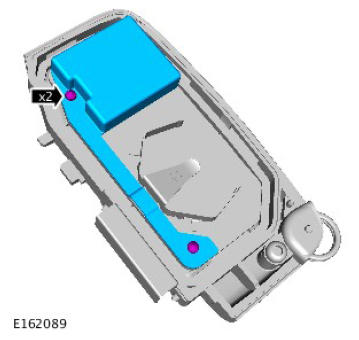

Using a suitable tool, cut the fixings of the black anti-tamper cover and lift away from the Printed Circuit Board [PCB].

CAUTION: When removing the PCB, only handle the outer edges of the board.

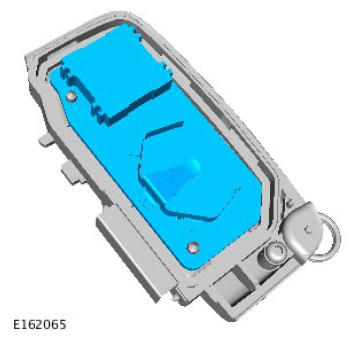

Remove the PCB; place to one side.
Remove the key ring retainer; place to one side.

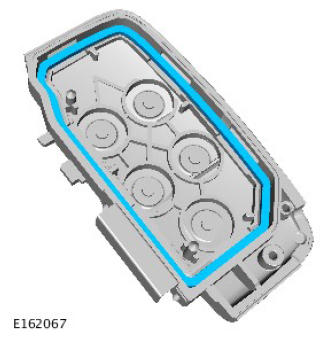

Remove the silicone seal from the lower case; place to one side.
- Discard the upper case.

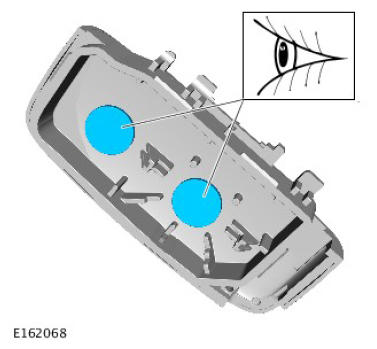

Make sure the foam pads are installed in the lower case as shown.

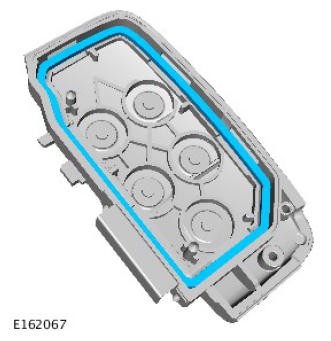

Install the silicone seal to the upper case.

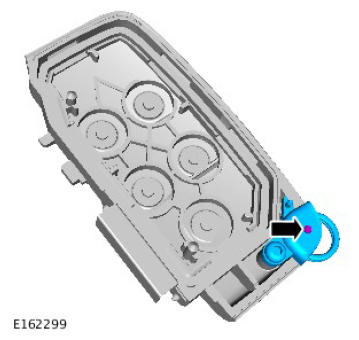

Install the key ring retainer to the upper case:
- Tighten to 1Nm.

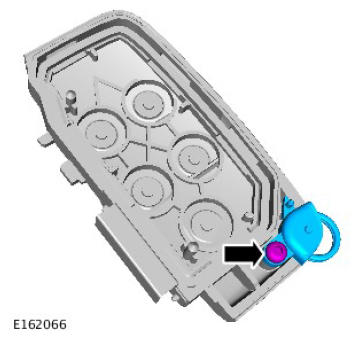

Make sure the key ring retaining pin is present in the upper case.

CAUTION: When installing the PCB, only handle the outer edges of the board.

NOTE: The PCB and cover are held in position with the foam pads on the new upper case.
Install the PCB to the upper case.
Install the PCB anti-tamper cover.

NOTE: Make sure the battery is installed positive [+] side up.
Install the battery to the upper case.

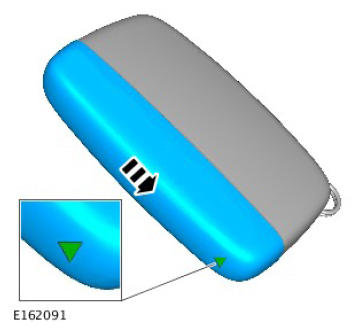

Install the lower case onto the handset.

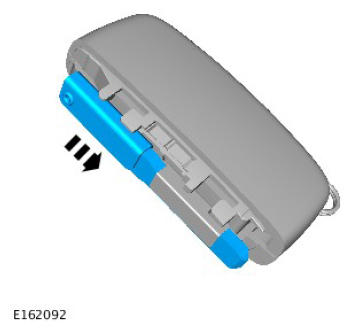

Install the key blade.
Install the chrome cap.
Check the operation of the compact key handset [all functions].
Perform steps 2 - 20 [if necessary] to additional compact key handsets.
