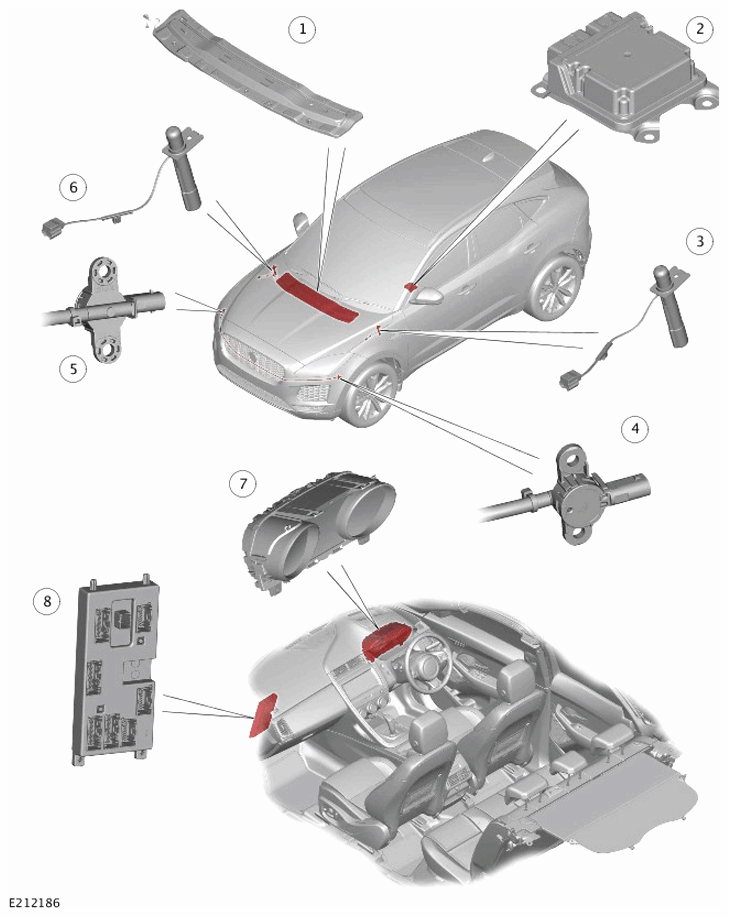

Component Location

G12497751Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC
ITEM DESCRIPTION
1 Pedestrian protection system airbag
2 Restraints Control Module (RCM)
3 Left hood deployment control
4 Left pressure sensor
5 Right pressure sensor
6 Right hood deployment control
7 Instrument Cluster (IC)
8 Body Control Module/Gateway Module (BCM/GWM)
