Removal And Installation: Removal
NOTE:
- This procedure contains some variation in the illustrations depending on the vehicle specification, but the essential information is always correct.
- This procedure contains illustrations showing certain components removed to provide extra clarity.
- Remove the interior rear view mirror.
Refer to: Interior Rear View Mirror Removal and Installation

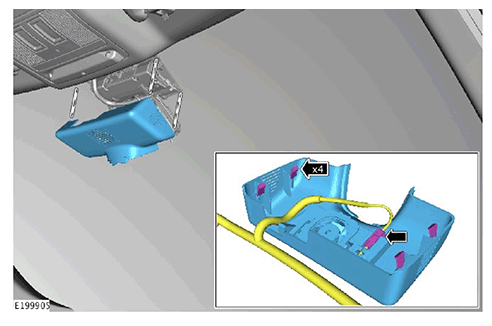

Remove the cover.

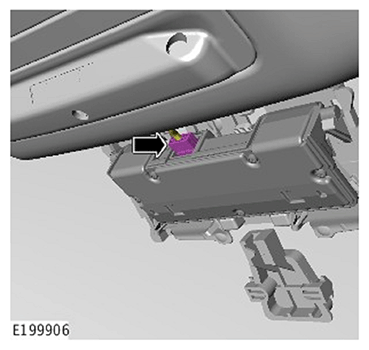

Disconnect the electrical connector.

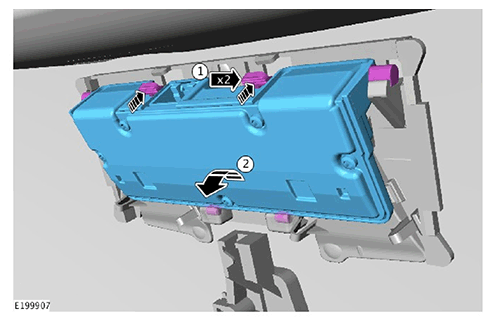

Remove the camera in the illustrated sequence.
