Image Processing Module 'A'

Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

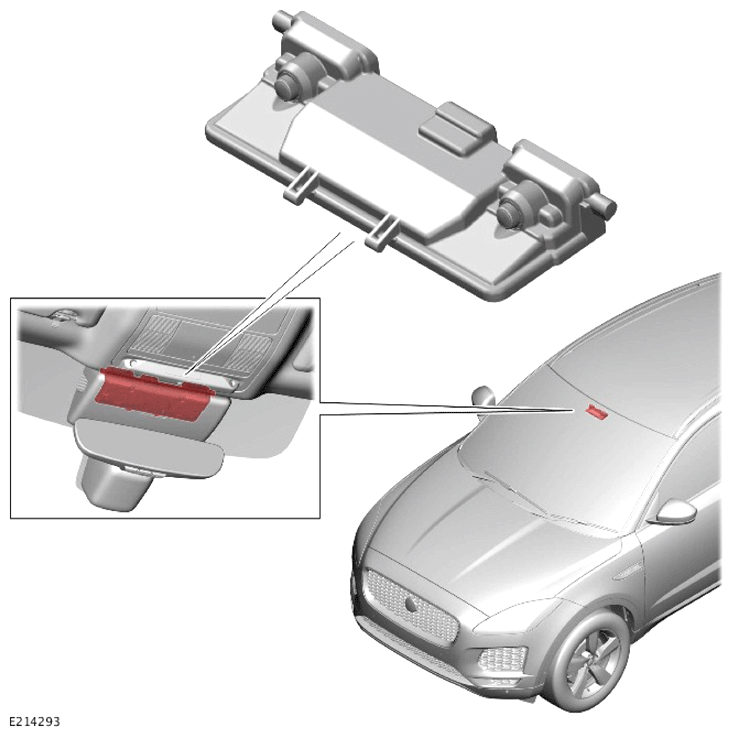

The Image Processing Module 'A' (IPMA) is located in the headliner adjacent to the internal Rear View Mirror (RVM).

The IPMA hosts:

• The Auto High Beam (AHB)
• Lane Departure Warning (LDW) software

The IPMA connects to the Body Control Module/Gateway Module (BCM/GWM) on the High Speed (HS) Controller Area (CAN) chassis systems bus.

For additional information, refer to: WARNING DEVICES .
