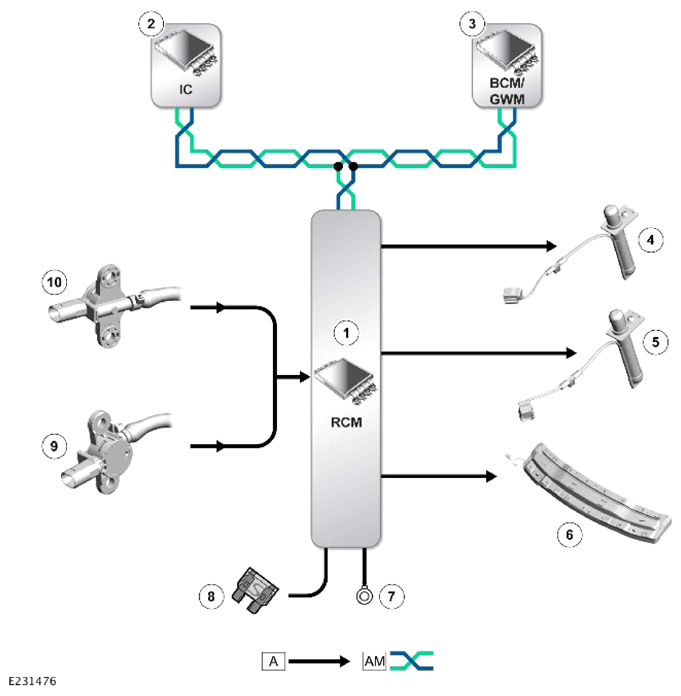

Control Diagram
A = HARDWIRED: AM = HIGH SPEED [HS] CONTROLLER AREA NETWORK [CAN] CHASSIS SYSTEMS BUS .
| ITEM | DESCRIPTION |
|---|---|
| 1 | Restraints Control Module (RCM) |
| 2 | Instrument Cluster (IC) |
| 3 | Body Control Module/Gateway Module (BCM/GWM) |
| 4 | Left hood deployment control |
| 5 | Right hood deployment control |
| 6 | Pedestrian protection system airbag |
| 7 | Ground |
| 8 | Supply |
| 9 | Left pressure sensor |
| 10 | Right pressure sensor |
