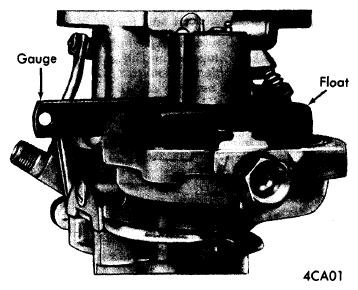

Float Level
With carburetor assembly inverted, bowl and bowl gasket removed and weight of float resting on inlet needle, measure distance from machined surface of casting to tip on outer end of float. Adjust to specifications by bending float bracket.
NOTE:
If adjustment is made with float in carburetor, do not allow any pressure to be placed on resilient inlet needle seat.
