Float Level

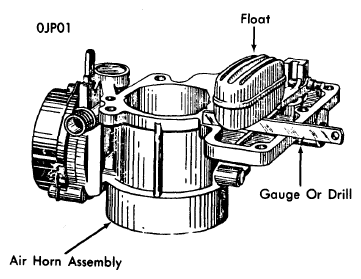

Remove air horn and gasket from carburetor. Invert air horn assembly and measure distance between top of float at free end and air horn casting.
CAUTION:
Do not put any pressure on needle forcing it into seat when making adjustment.
Bend float arm as necessary to adjust float level.
NOTE:
Do not bend tab at end of float arm to make adjustment.
