System Performance Check: Notes

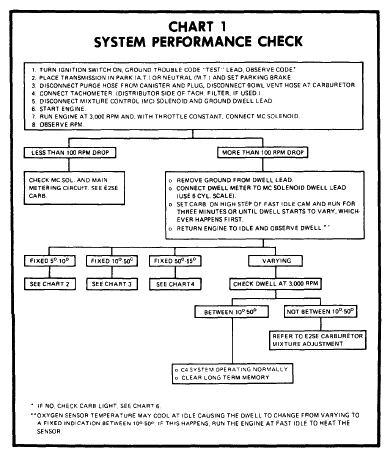

Since it is not possible to store a code for every possible problem, one may develop in which the "CHECK CARB" light does NOT come on. If C-4 system is suspected, make a System Performance Check, using a dwell meter, ohmmeter, test light, voltmeter, tachometer, vacuum gauge and jumper wires. Refer to  Figure  chart later in this article  .
