Master Switch

  1. Check power source line to switch connector.
  2. Inspect the power source line between terminal B and the body ground of the wiring connection.
  3. Inspect the ground connection.
  4. Inspect the ground connection between terminal E and body ground of wiring connector. See Fig 1 .
    Fig 1: Identifying Control Switch Terminals
    G00110283Courtesy of CHRYSLER CORP.
  5. Test switch for continuity. See Fig 2 .

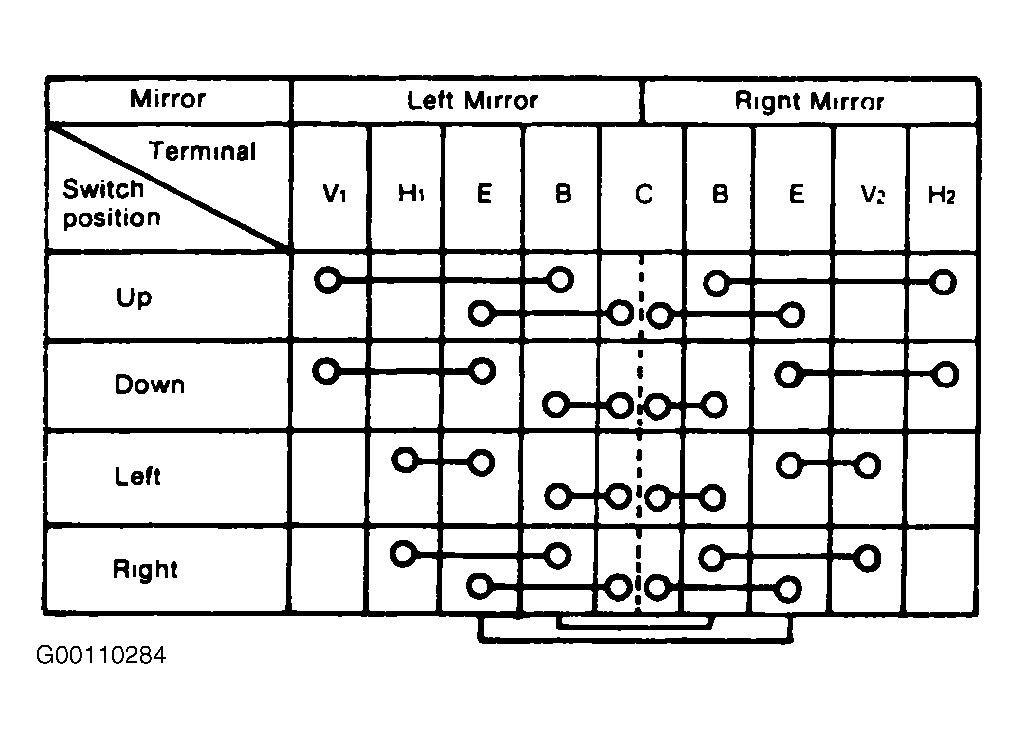

    Fig 2: Master Switch Continuity Reference Chart
    G00110284Courtesy of CHRYSLER CORP.
