Turning Angle

  1. The turning angle stop screws are located on back side of steering knuckle, just above axle centerline. To adjust, loosen lock nut on stop screw.
  2. Using full-floating turn table under each wheel, adjust stop screw IN to increase turning angle and OUT to decrease turning angle. Tighten lock nut.

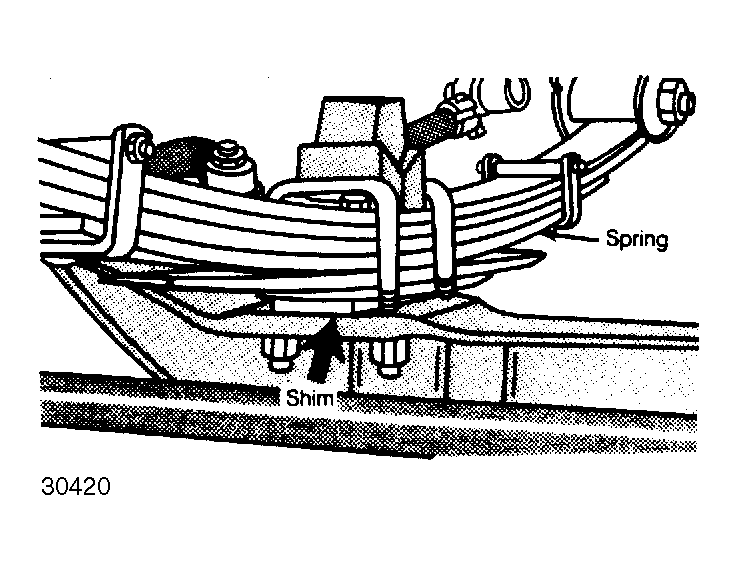

Fig 1: Caster Adjustment To adjust, insert shim between spring and axle.
G30420
TURNING ANGLE ADJUSTMENT

Application Left Wheel Right Wheel
Cherokee, Pickup & Wagoneer 36-37° 36-37°
