Service Indicator & Warning Lights: Notes

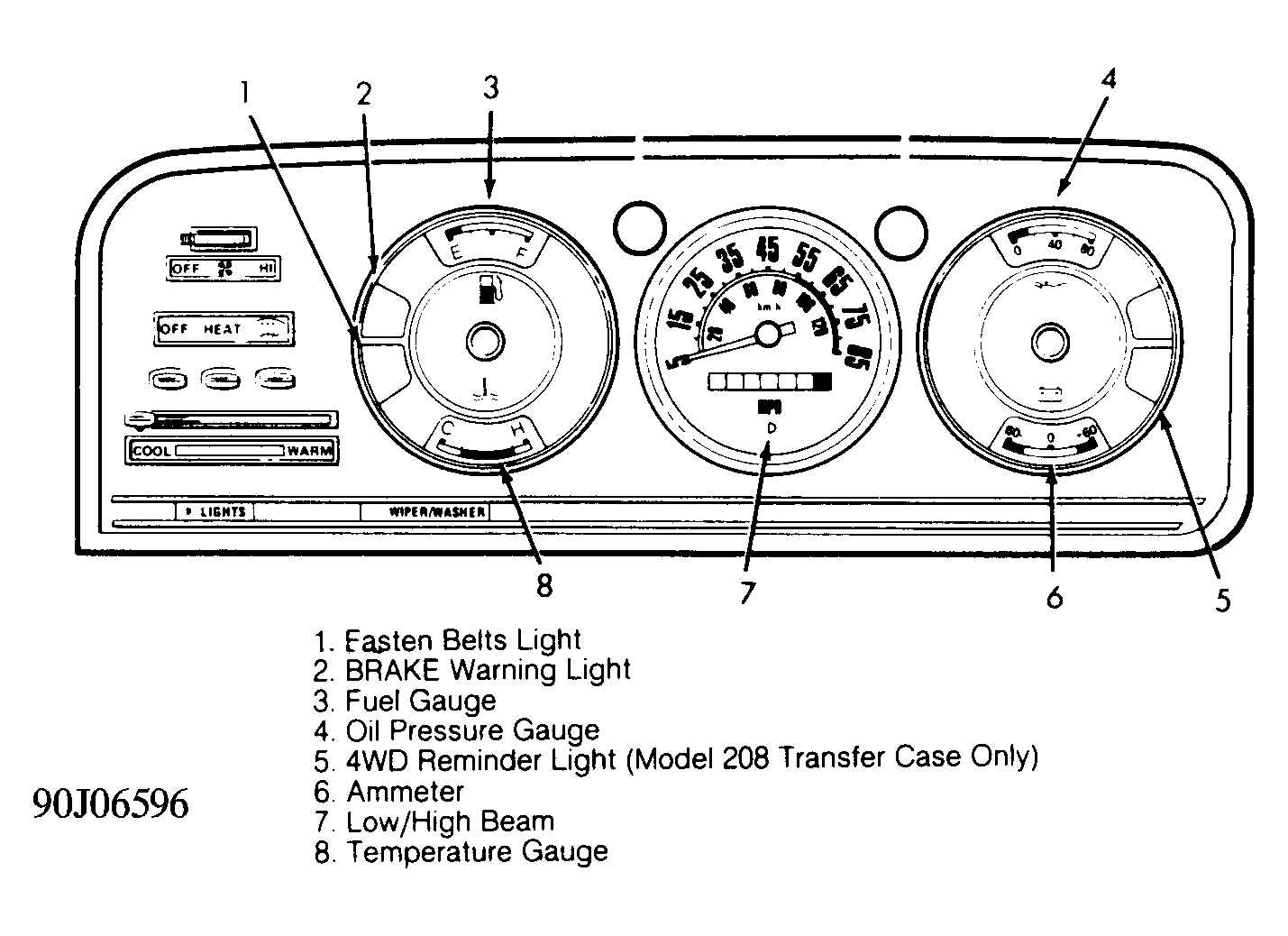

Fig 1: Dash Gauges and Warning Lights (1983-85)
G90J06596Courtesy of CHRYSLER MOTORS.

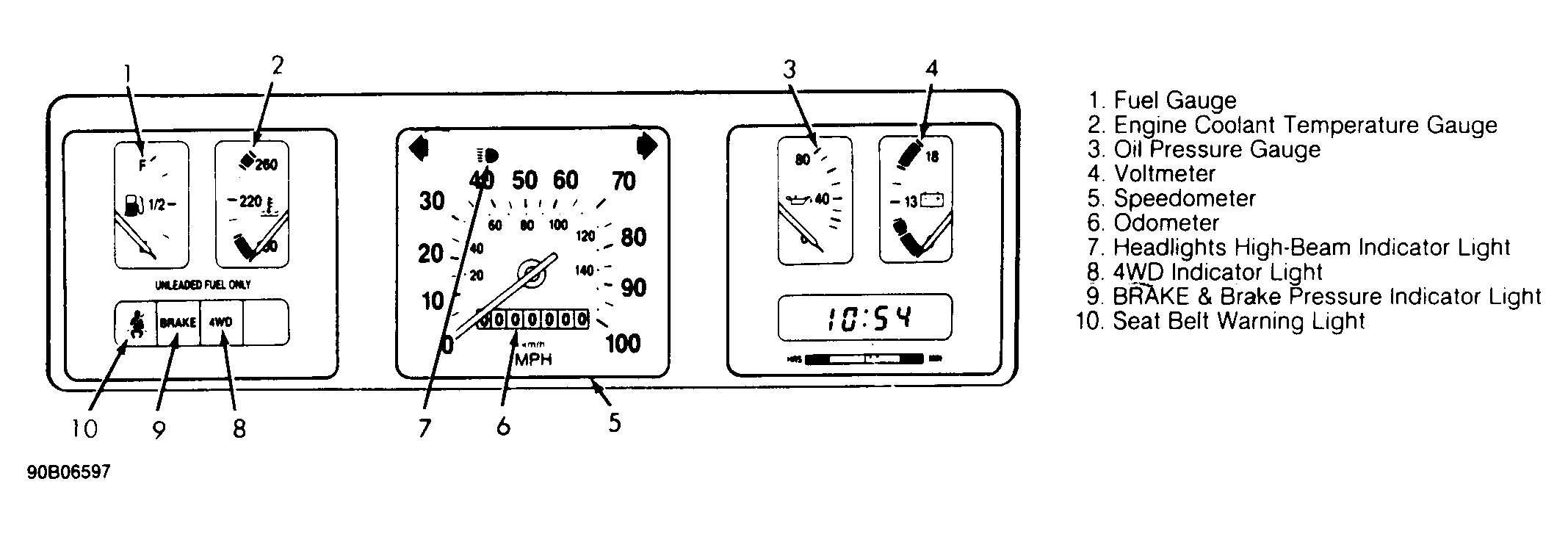

Fig 2: Dash Gauges and Warning Lights (1986-91)
G90B06597Courtesy of CHRYSLER MOTORS.
