Control Switch Continuity

Use a 12-volt test lamp to test control switch continuity. Connect test lamp to wires as indicated in Control Switch Test Chart. See Fig 1 .

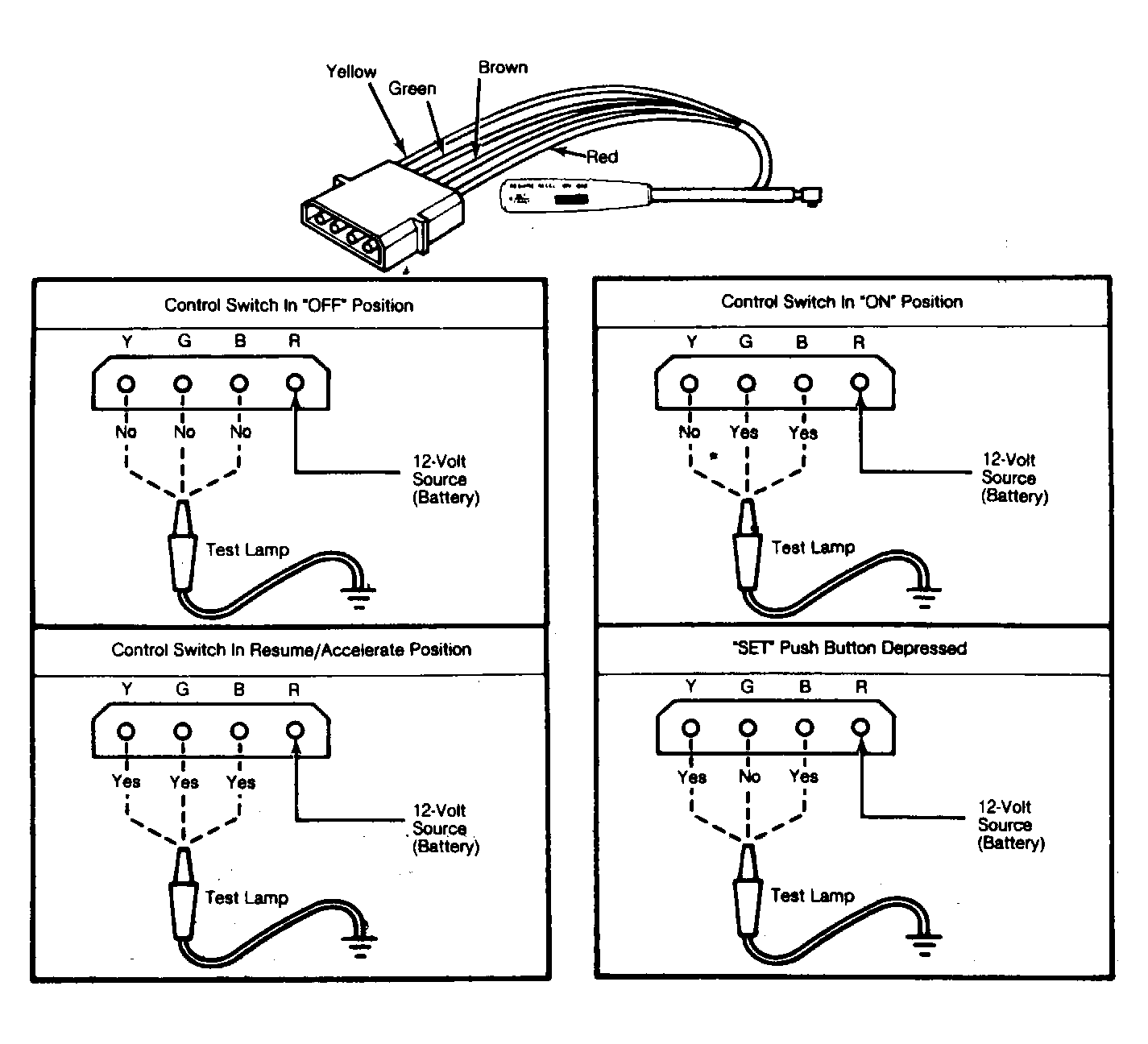

Fig 1: CJ7, Scrambler, Grand Wagoneer & Truck Control Switch Continuity Test Chart
