LEMON Manuals
: Even more car manuals for everyone: 1960-2025
Home
>>
Jeep
>>
1986
>>
Wagoneer Base, 2.1 B
>>
Repair and Diagnosis
>>
Engine Performance
>>
System
>>
2.8L Feedback Carburetor System
>>
Diagnosis & Testing
>>
Trouble Code 34
July 1:
So it begins
. Don't worry, this is not in the correct legal jurisdiction!
Trouble Code 34

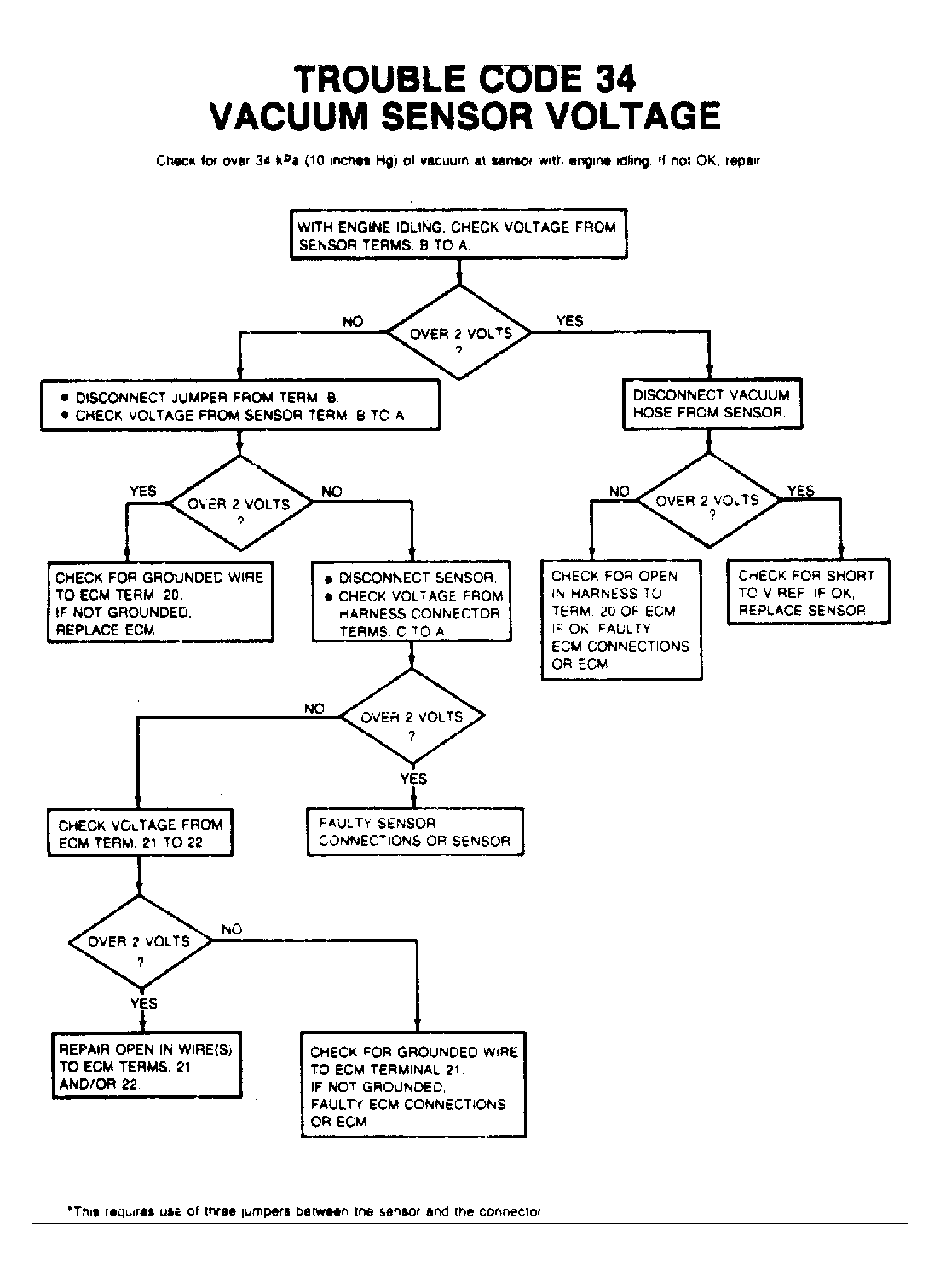

Fig 1: Trouble Code 34, Vacuum Sensor Voltage
