Test 4: System Operational

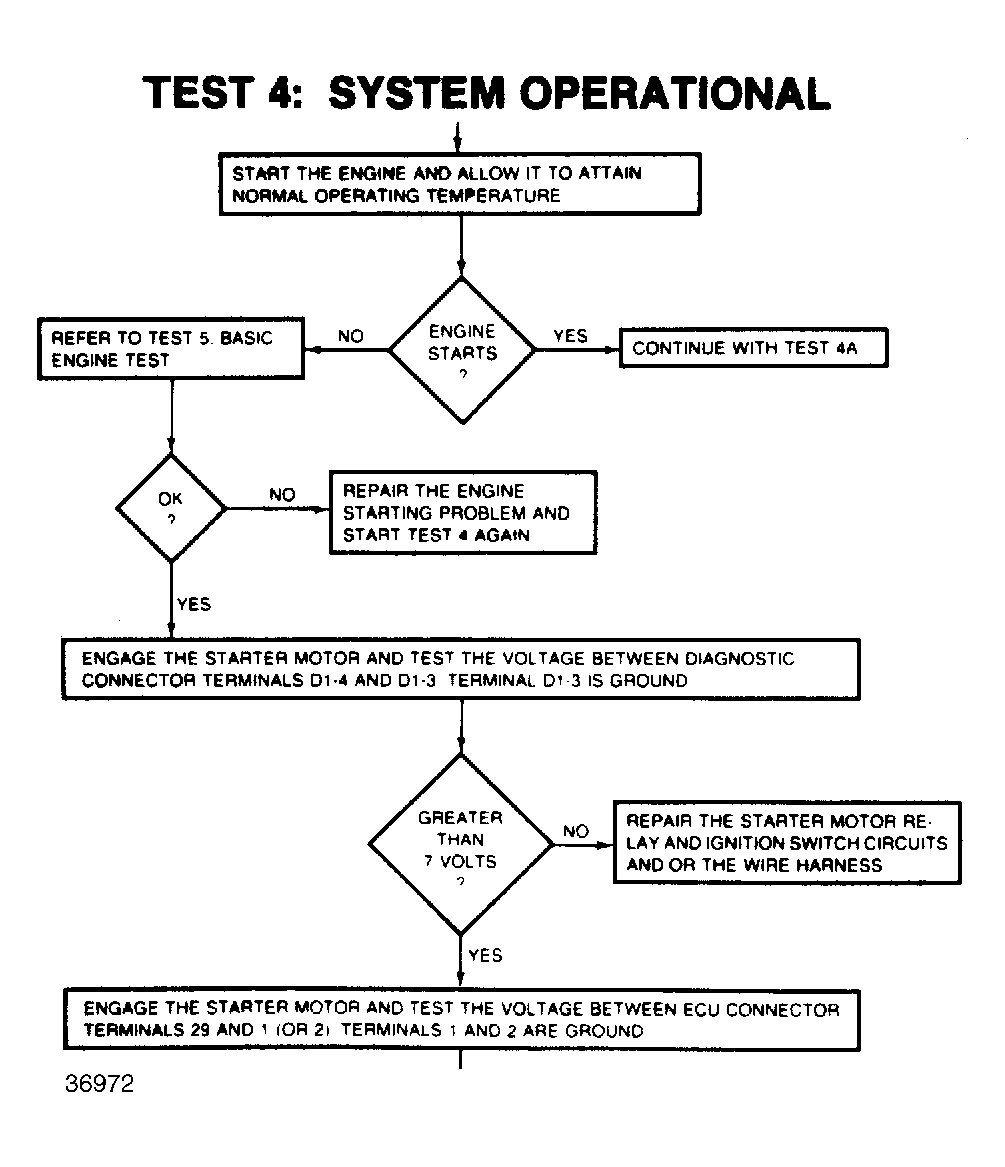

Fig 1: Test 4: System Operational (1 of 2)
Fig 2: Test 4: System Operational (2 of 2)
