Trouble Shooting
- Ensure fuse is okay by operating interior lights. If neither mirror operates, check for battery voltage at power mirror switch assembly. Connect a voltmeter between terminal "G" (Red with White stripe) and ground. If battery voltage is present, connect voltmeter between terminals "G" and "F" (Black). If battery voltage is not present, check circuit at Red with White stripe wire and Black wire.

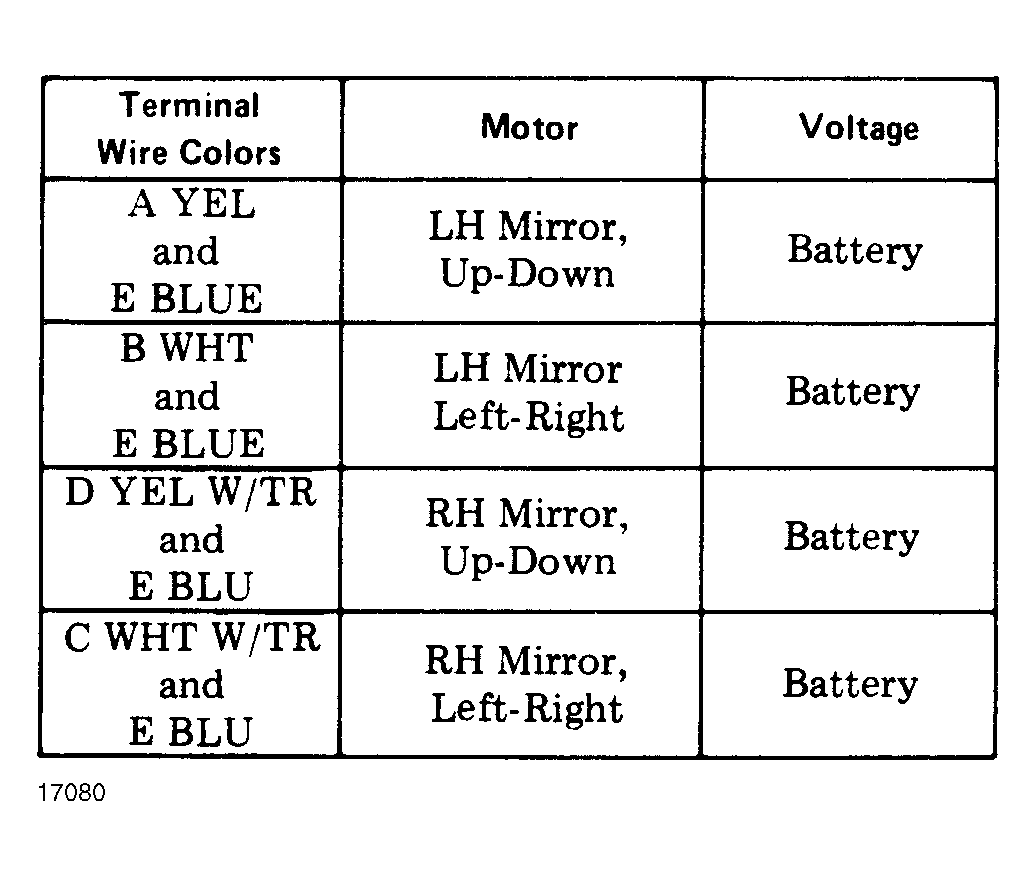

- If one mirror does not operate, connect a voltmeter across power mirror switch assembly terminals. See Fig 1
. Voltage will be present when control switch and mirror select switch are operated for that motor.
Courtesy of AMERICAN MOTORS/JEEP CORP.
- If voltage is present but mirror does not operate, check motor and wiring. If voltage is not present when 2 switches are on, replace switch assembly.
