Wiring Diagrams

Fig 1: Comanche Engine Control System Wiring Diagram
G12425

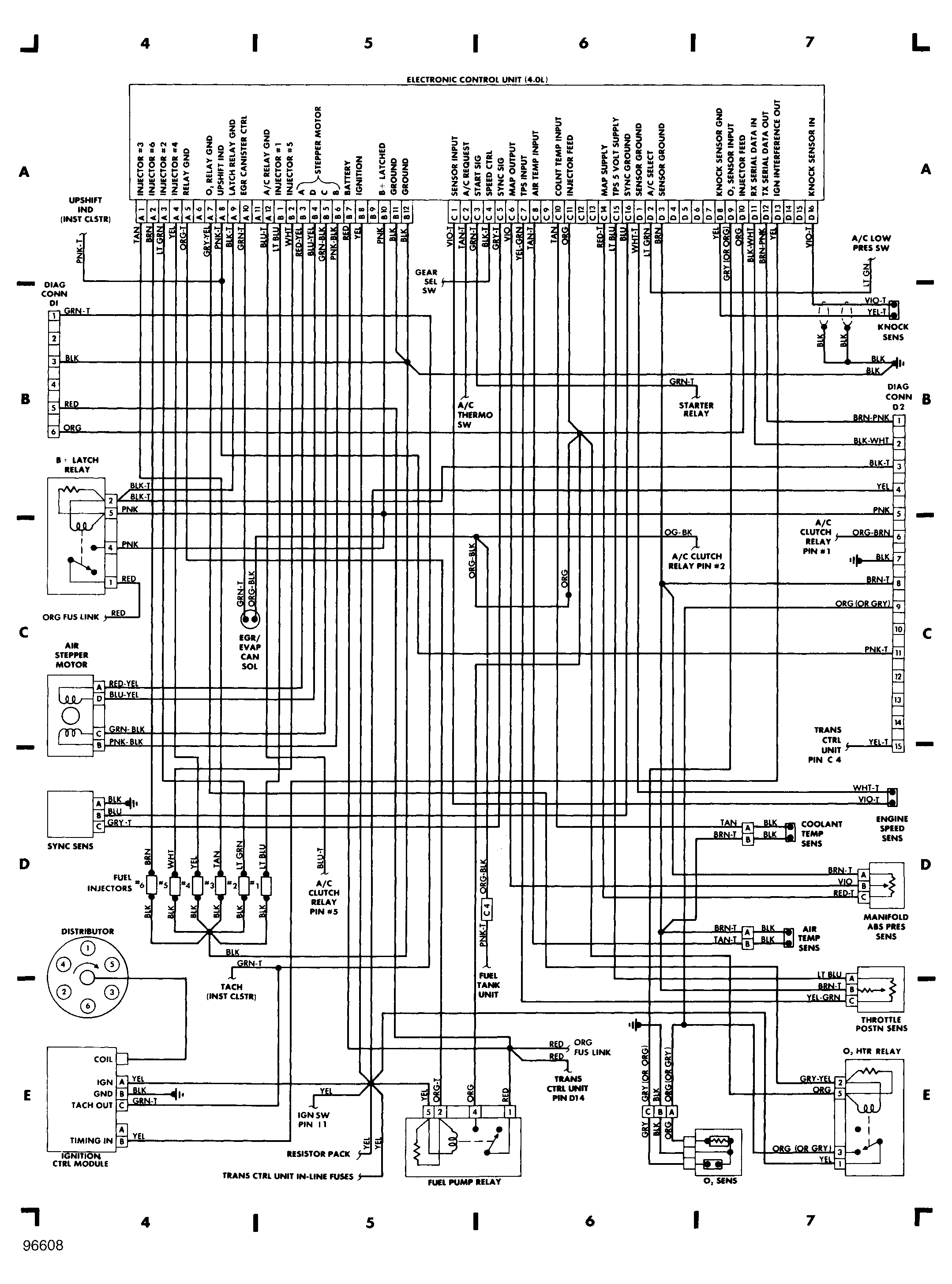

Fig 2: Cherokee Engine Control System Wiring Diagram
G96608
