2.5L TBI CEC Testing
>>
Diagnostic Trouble Codes (DTC)
>>
Fault Code 1005 - Sensor Ground Line Out Of Limits
July 1:
So it begins
. Don't worry, this is not in the correct legal jurisdiction!
Fault Code 1005 - Sensor Ground Line Out Of Limits

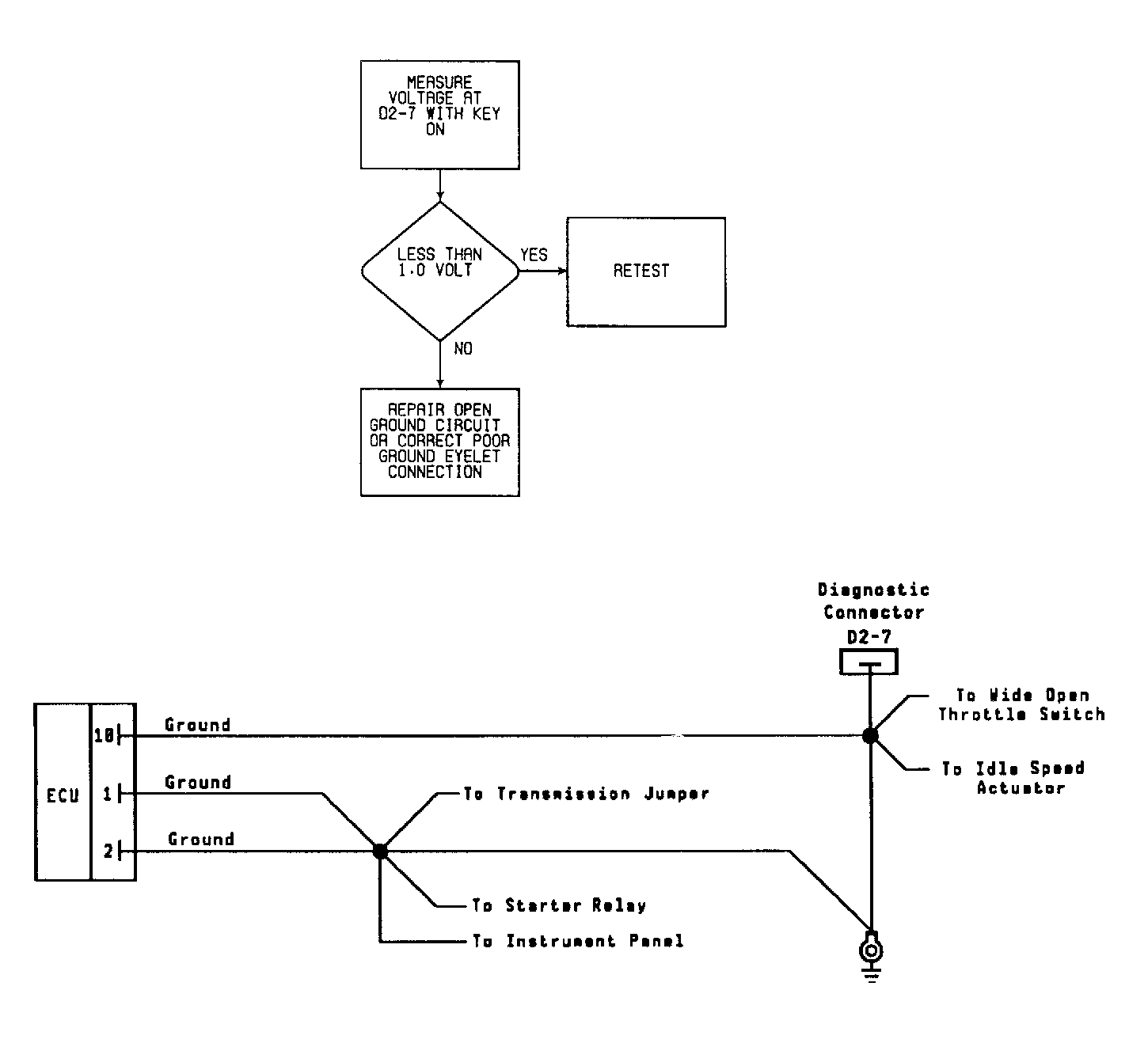

Fig 1: Testing For Fault Code 1005 - Sensor Ground Line Out Of Limits
Courtesy of CHRYSLER MOTORS.
