Fault Code 1014 - Fuel Pump Line Low

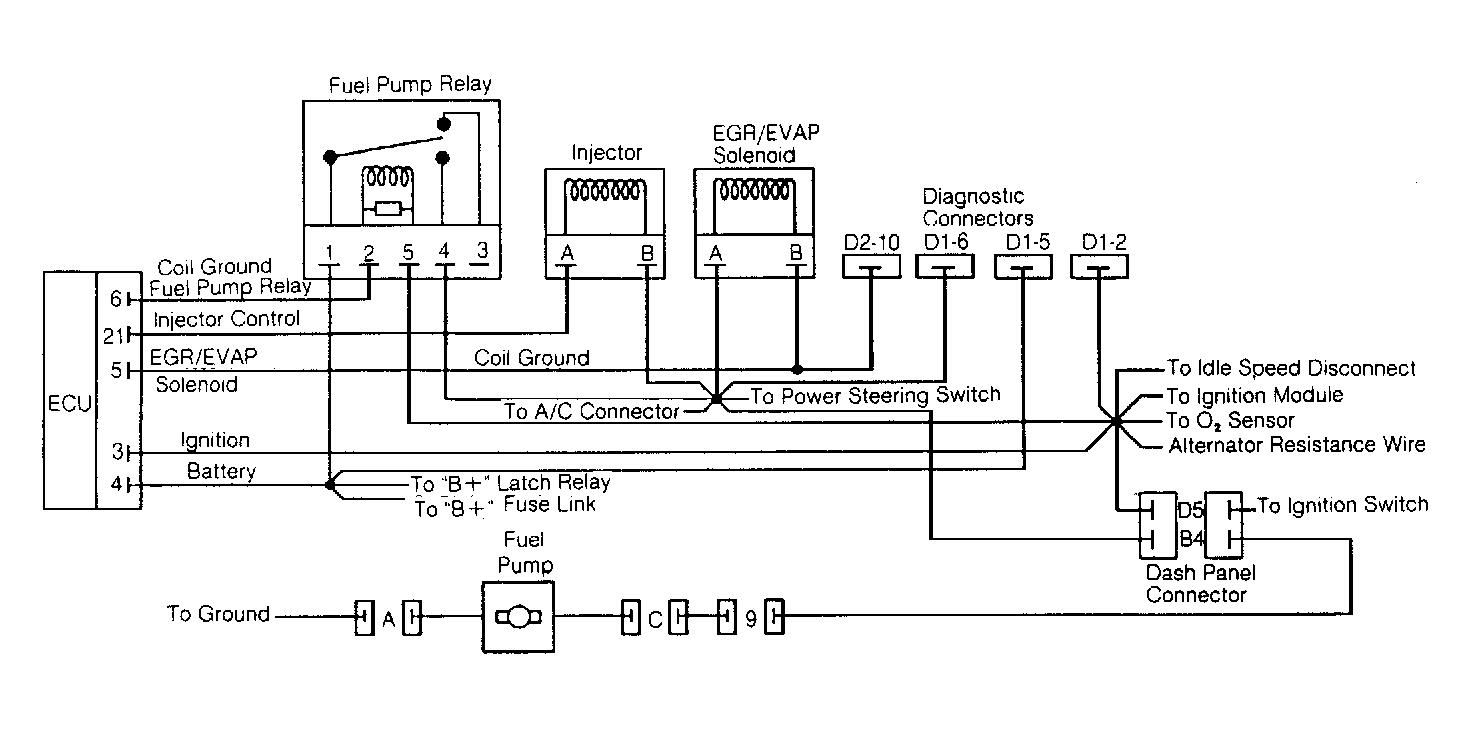

Fig 1: Fuel Pump Circuit Diagram
Courtesy of CHRYSLER MOTORS.

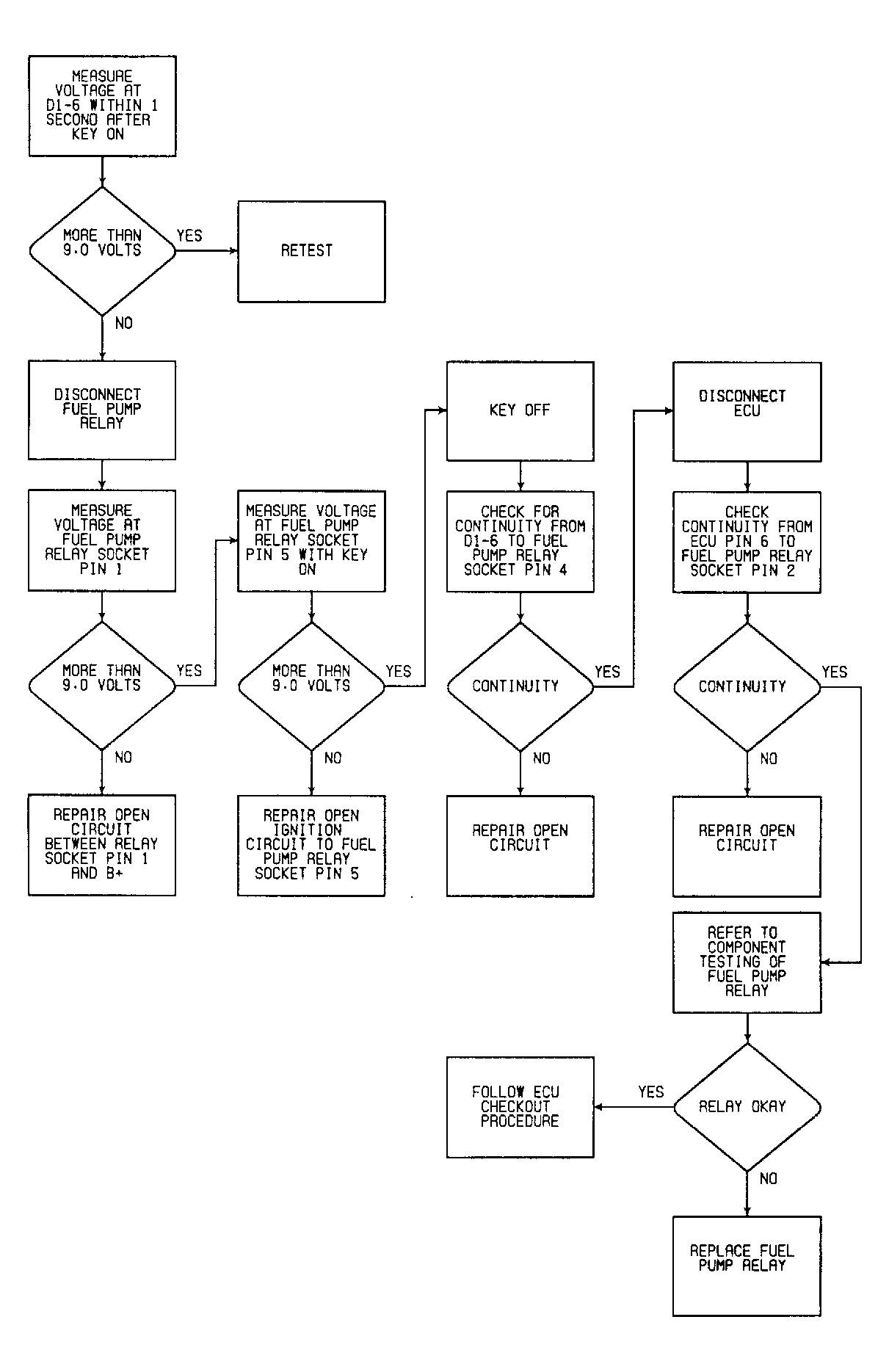

Fig 2: Testing For Fault Code 1014 - Fuel Pump Line Low
Courtesy of CHRYSLER MOTORS.
