Fault Code 1022 - Start Line Low
Fig 1: ECU, Starting Circuit Wiring Diagram
Courtesy of CHRYSLER MOTORS.

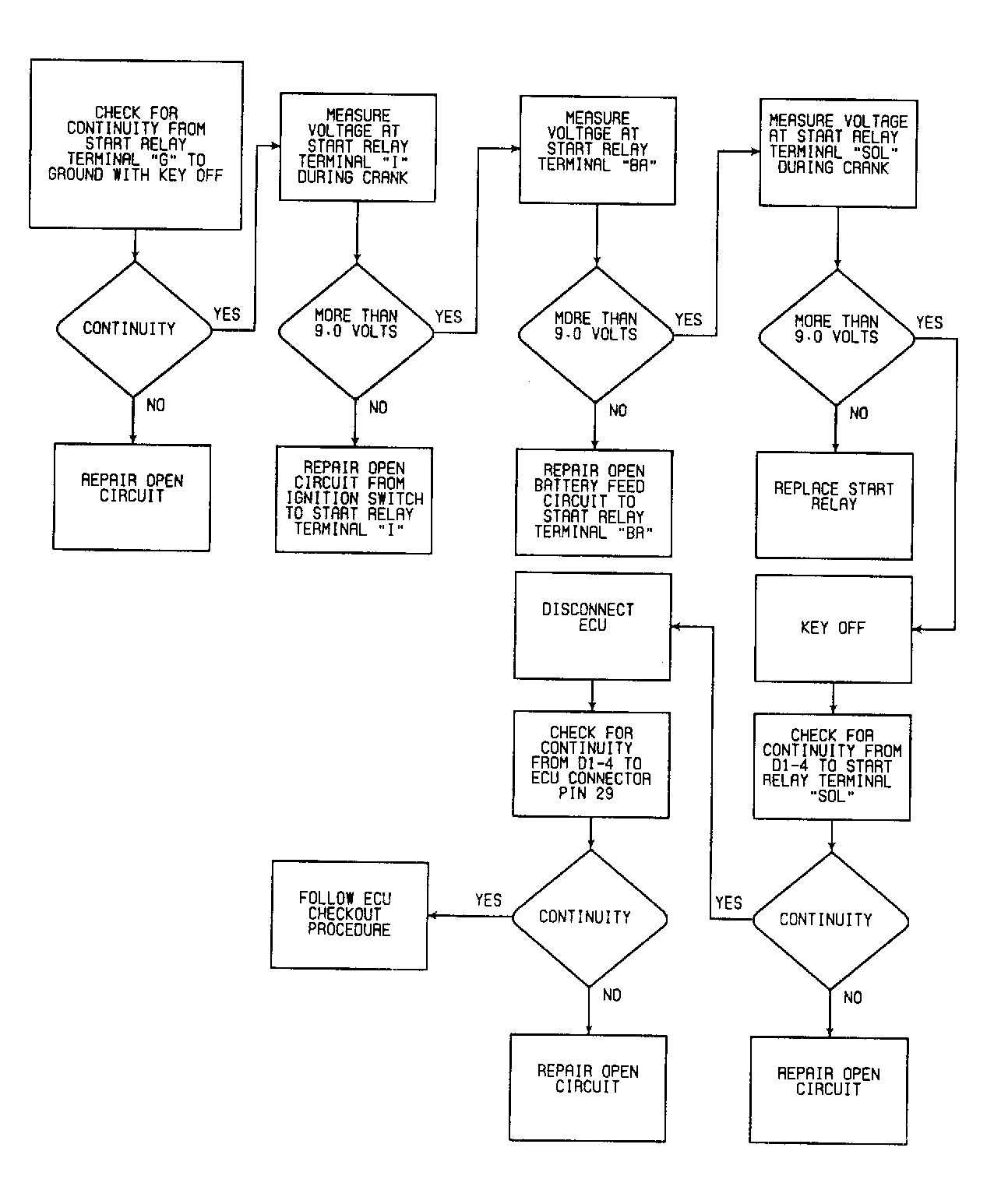

Fig 2: Testing For Fault Code 1022 - Start Line Low
Courtesy of CHRYSLER MOTORS.
