Overdrive Support Assembly: Reassembly

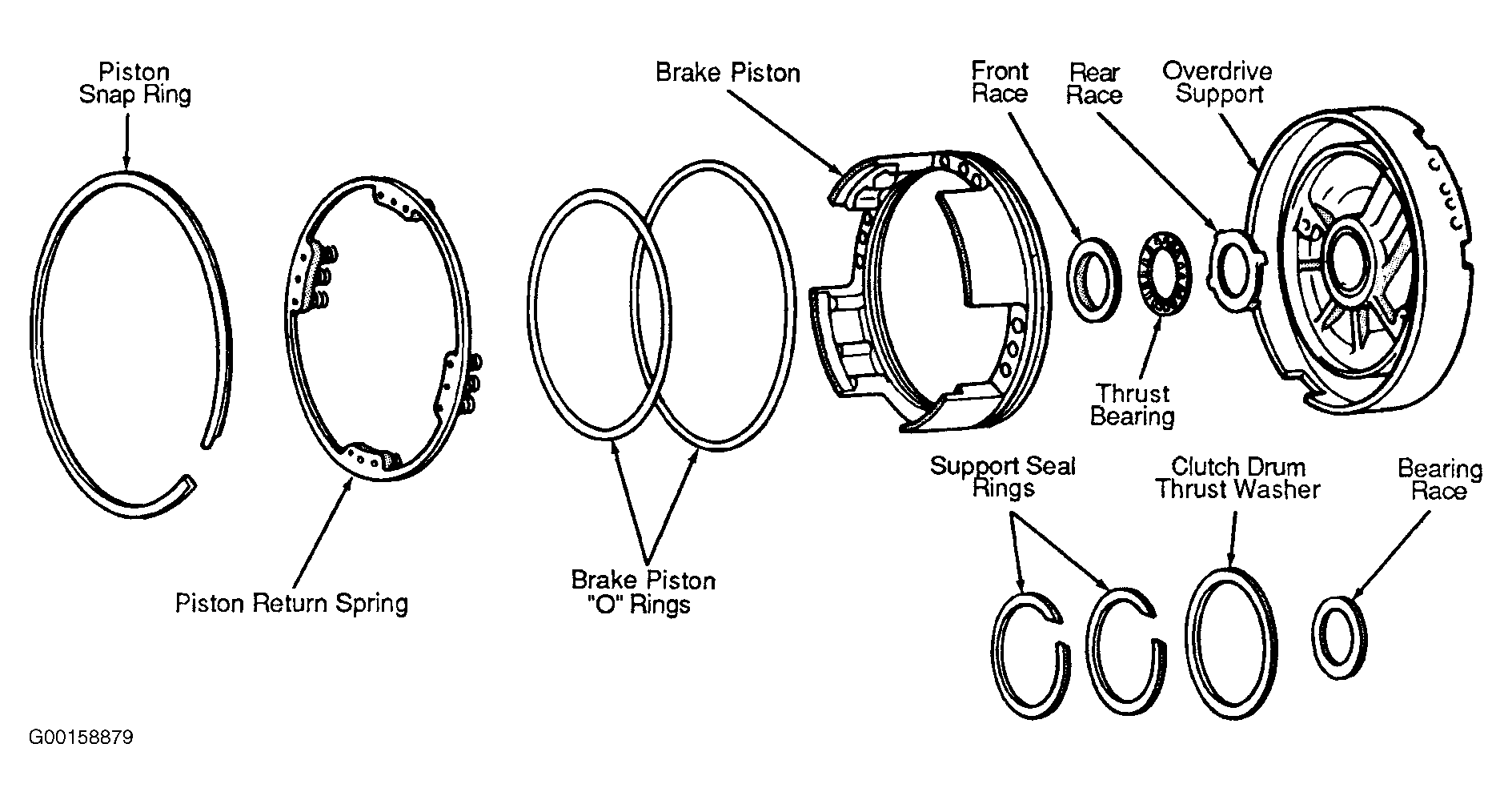

Reverse disassembly procedures. Lubricate support seal rings and "O" rings. See Fig 1 . Install new "O" rings. Thrust bearing rollers should face upward. Verify thrust bearing race sizes. See OVERDRIVE SUPPORT BEARING IDENTIFICATION table. Verify brake piston operation. Refer to disassembly procedure.
OVERDRIVE SUPPORT BEARING IDENTIFICATION
| Application | Outer Diameter - In. (mm) | Inner Diameter - In. (mm) |
|---|---|---|
| Bearing | 1.878 (47.7) | 1.287 (32.7) |
| Front Race | 1.882 (47.8) | 1.209 (30.7) |
| Rear Race | 1.882 (47.8) | 1.350 (34.3) |
